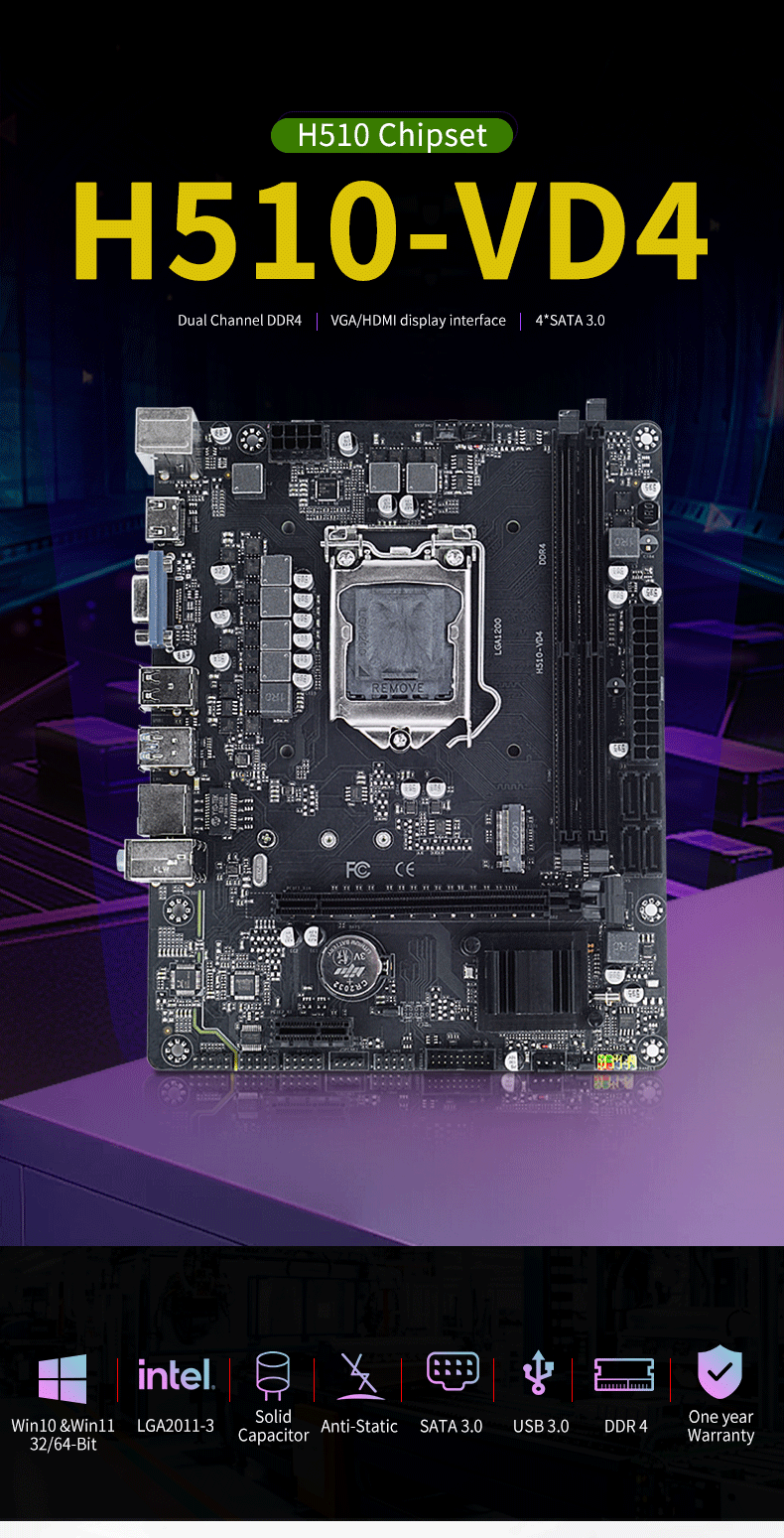

H510-VD4-V2.0 desktop motherboard Support Intel 10th/11th generation Celeron, Pentium, I3, I5, I7 series processors

H510-VD4-V2.0 desktop motherboard Support Intel 10th/11th generation Celeron, Pentium, I3, I5, I7 series processors

▲Supports Intel® Core™ i7/i5/i3 LGA1200 series
processors ▲Support 4 SATA_3.0 interfaces;
▲Support 4 USB3.0, 6 USB2.0
▲Support DDR4 memory, up to 64GB 3200MHz ▲Support 1 Audio ▲Support 1 serial port, only support RS232 mode ▲Support 1 RJ45 Gigabit LAN interface ▲Support M.2 KEYE
▲Support VGA/HDMI display interface, and support
simultaneous dual display
▲Support Win10, Win11 32/64 bit operating system

PRODUCT PROFILE
Product Name	H510-VD4-V2.0 desktop Motherboard
CPU	Support Intel 10th/11th generation Celeron, Pentium, I3, I5, I7 series processors
South Bridge	H510 Chipset
RAM	Technology	Dual Channel DDR4 3200MHz
	Max	64GB
	RAM Slot	2*288Pin DDR4 DIMM
	USB_PS/2	2 USB2.0 ports and 1 one-to-two PS/2 ports
Rear I/O	HDMI	1 standard D-type socket,support HDMI2.0,maximum support resolution 3840*2160@30Hz
	VGA	1 standard DB15 socket
	USB	2 USB3.0 ports, 2 USB2.0 ports
	Ethernet	1 Gigabit network card, Realtek network card chip

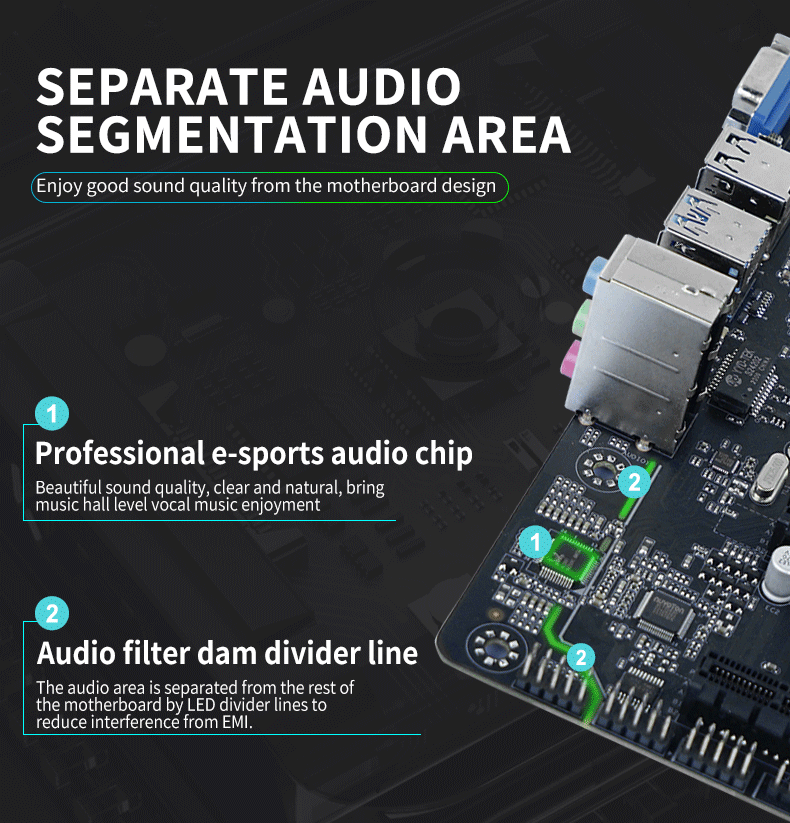

	Audio	1 (Mic-in, Line-out、Line-in)
internal connector	JESPI	1 2*5Pin diagnostic card interface
	USB3.0	2 ( 1 FUSB can be transferred to 2 USB 2.0 ports)；
	USB2.0	2 (1 FUSB can be transferred to 2 USB 3.0 ports)；
	Audio	1 2*5Pin
	Serial port	1（Only supports RS232 mode）
	FAN	3 (2 SYS_FAN；1 CPU_FAN）
	M.2	1 full-length M.2 KEY slot, supports M.2 hard drives
	PCIE	1 PCIE_X16; 1 PCIE_x1
	SATA	4 SATA ports, support SATA 3.0
	ATXPWR	1 standard 1x8Pin power socket; 1 standard 1x24Pin power socket
Environment	Temp Range	Work Environment	Storage Environment
		Temp：-10～60℃ Humidity：5%~95%	Temp：-40~85℃ Humidity：5%~95%

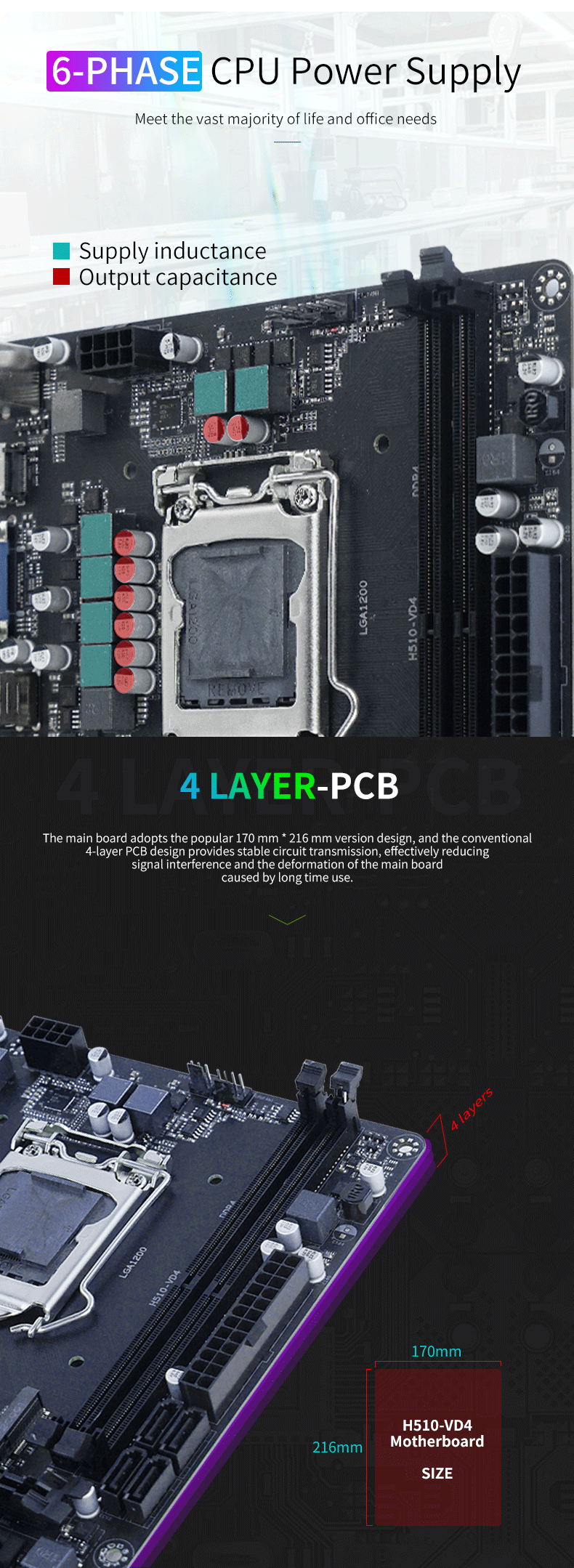

Dimension	Size	170MM x 216MM
