▲Supports Intel Xeon E5 LGA2011-V1/V2 processors ▲Supports 6 SATA ports,4 USB3.0 ports, and 12 USB2.0 ports ▲ ▲High-speed DDR3 four-channel memory slots:supported
1066/1333/1600/1866MHz, Maximum capacity 128 GB memory
▲Supports 5.1 channel ALC897 chip
▲Supports the transmission speed of high-speed USB3.0
interfaces ▲Supports 1*PCIE protocol M.2
▲Supports RJ45 Gigabit network adapter ports ▲Support the PCIE * 3 * 1 PCI
▲Support 6 layers of PCB baseboard, 7 phase power supply
| PRODUCT PROFILE | |||

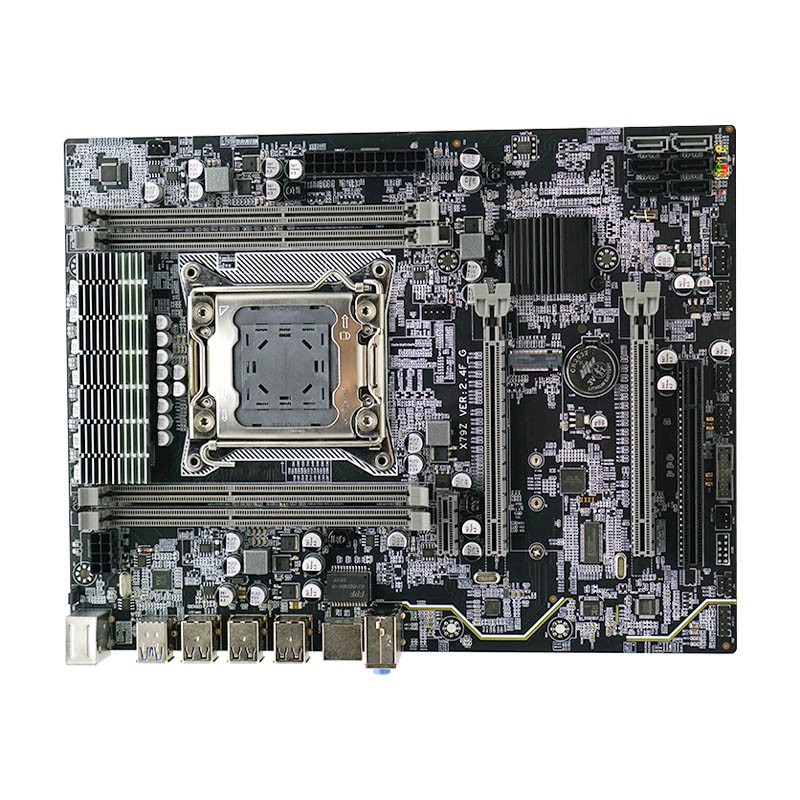

| Product Name | X79Z-V2.4F-G desktop Motherboard | ||
| CPU | Supports Intel Xeon E5 LGA2011-V1/V2 processors | ||
| South Bridge | X79 Chipset Series | ||
| RAM | Technology | Four Channels DDR3 1066/1333/1600/1866 MHz | |
| Max capacity | 128GB | ||
| RAM Slot | 4 * 240 PIN DDR3 | ||
| Rear I/O | Ethernet | 1*Realtek Gigabit network Adapter | |
| Audio | 1*(Mic-in, Line-out, Line-in) | ||
| USB port | 2* USB 3.0; 6*USB 2.0 | ||
| PS/2 | 1*(PS/2Mouse，PS/2Keyboard) | ||
| internal connector | PCIe | 3*（2*PCIe x16;1*PCIe x1） | |
| PCI | 1 | ||
| USB2.0 | 2*USB3.0 (1 FUSB Can be transferred to two USB) | ||
| USB3.0 | 6*USB2.0(1 FUSB Can be transferred to two USB) | ||
| SATA | 6*SATA port（4*SATA2.0,2*SATA3.0） | ||
| JATXPWR | 1 Standard 1x8PIN Power socket；1 Standard 1x24PIN Power socket | ||
| Fan | 3*SFAN,1*CFAN | ||
| Audio | 1* 2*5Pin Plug Pin | ||
| M.2 | 1*PCIE Protocol M.2 | ||
| Environment | Temp Range | Work Environment | Storage Environment |
| Temp：0～50℃ Humidity：5%~95% | Temp：-20~70℃ Humidity：5%~95% | ||
| Dimension | Size | 220MM x 283MM | |
| Product advantages: |
| Well-cooling system with Good thermal material aluminum base for motherboard |
| All-solid electric capacitor for motherboard |
| PCB Copper plating technology for Motherboard |
| Independent power supply designed for Motherboard CPU |
| Zero burning protection circuit for Motherboard |
| Dual safety device stabilize voltage and current for load data uniformly |
| Company advantages |
| 23 YEARS Motherboard FACTORY |
| ECO-ENVIRONMENT MATERIAL |
| CE ROHS FCC ISO CERTIFICATES |
| 50+ R8D DESIGNER TEAM |
| FAST DELIVERY SHIPPING |
| GUARANTEED AFTER-SALE SERVICE |
