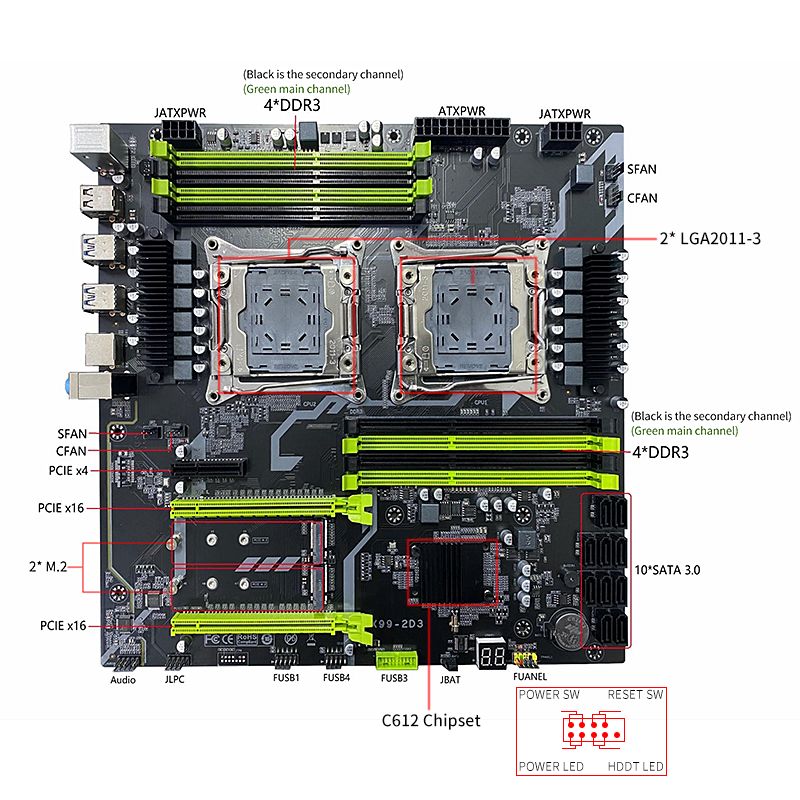

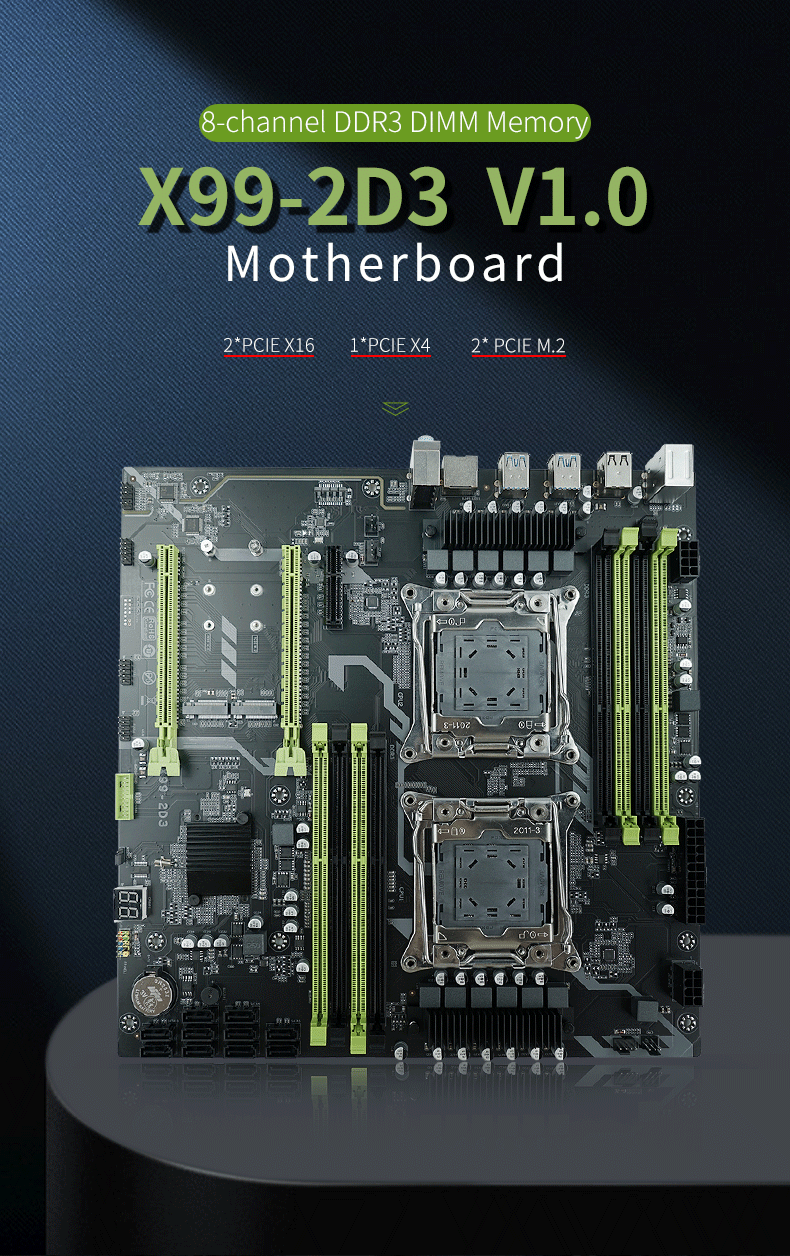

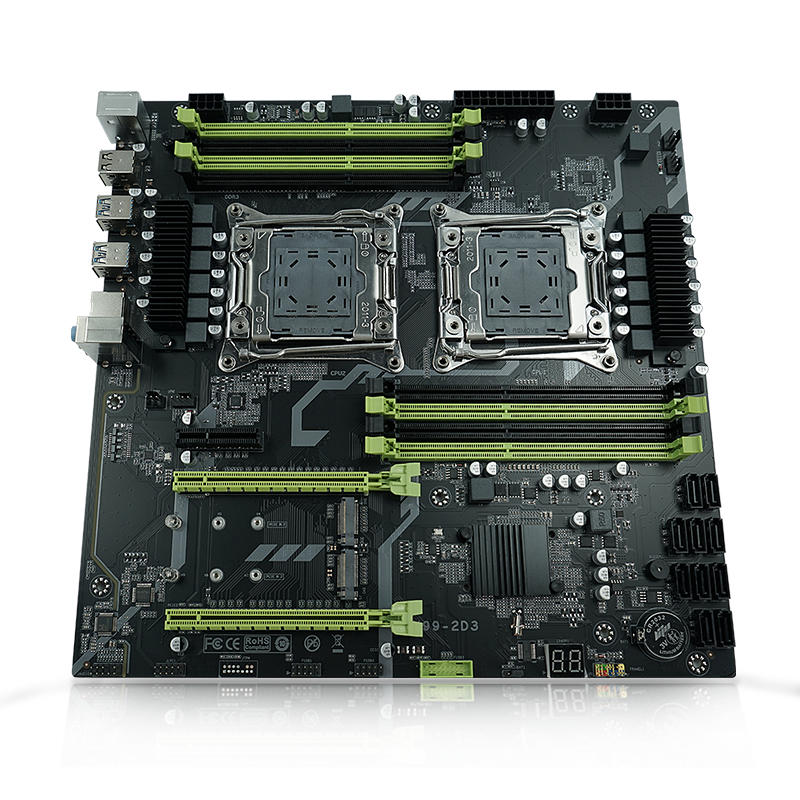

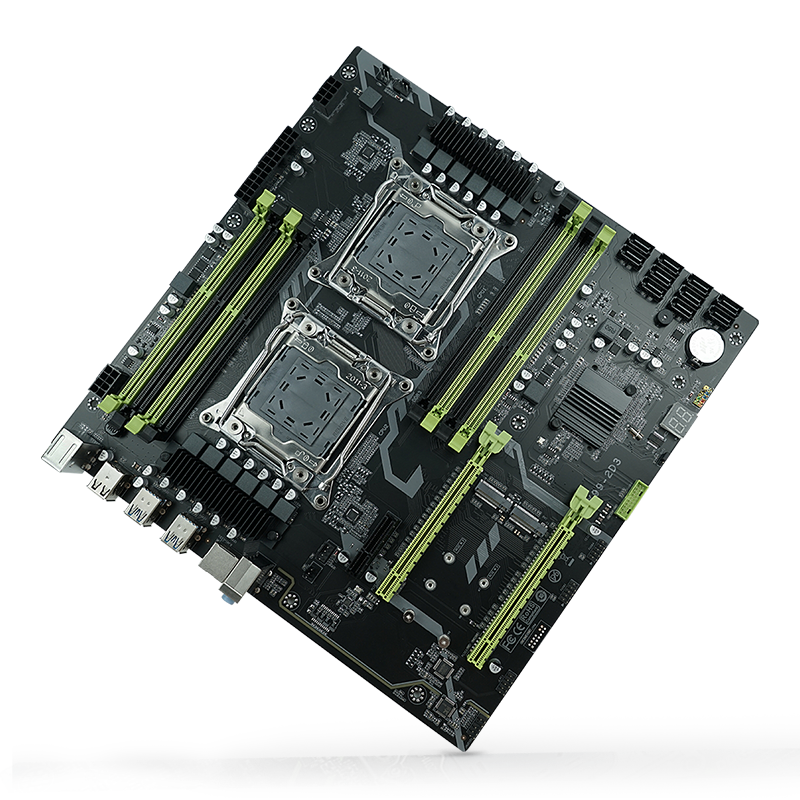

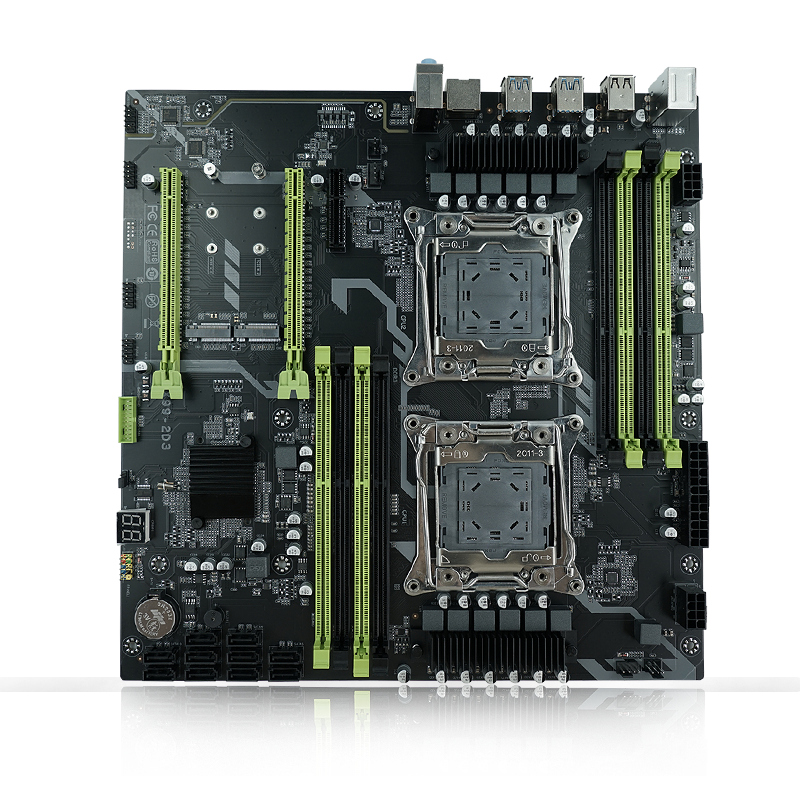

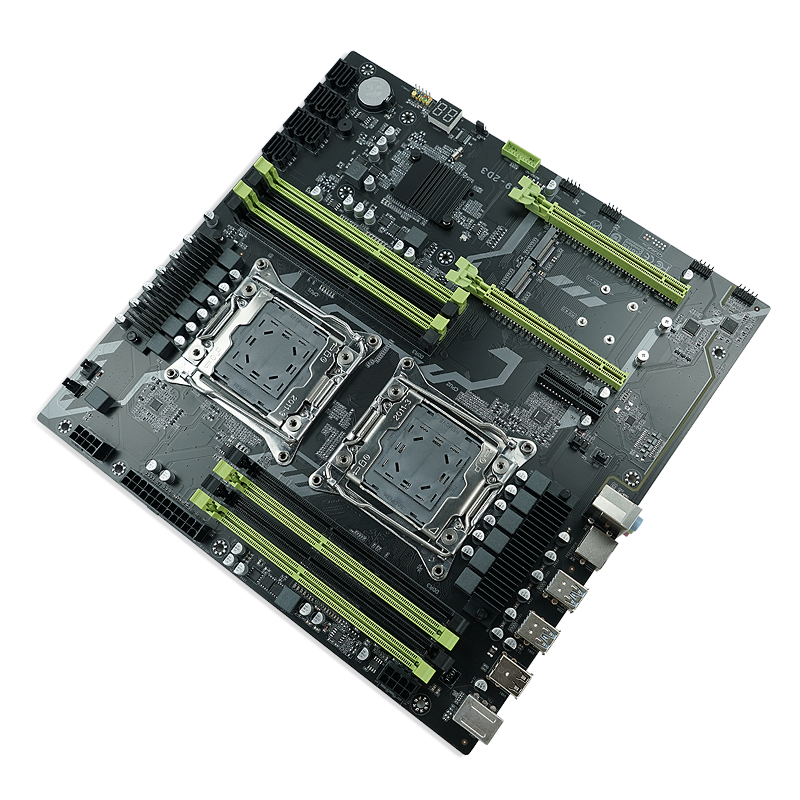

X99-2D3 V1.0 Intel C612 LGA2011-3 Desktop Motherboard

X99-2D3 V1.0 Intel C612 LGA2011-3 Desktop Motherboard

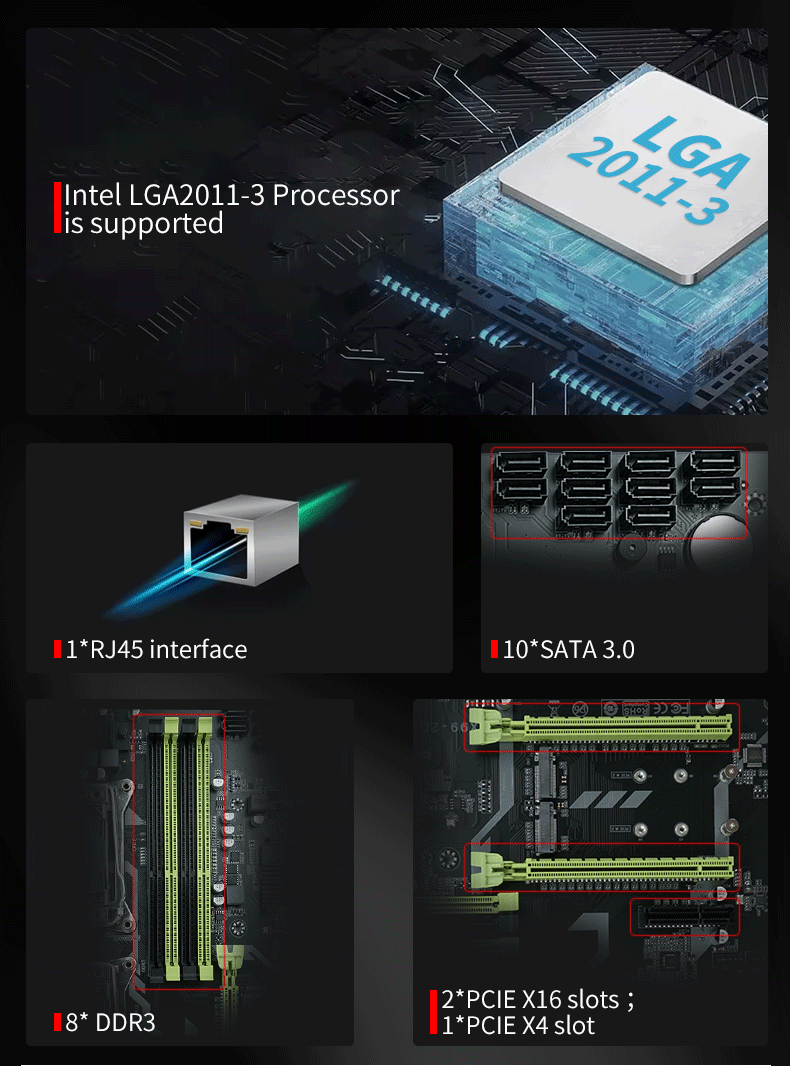

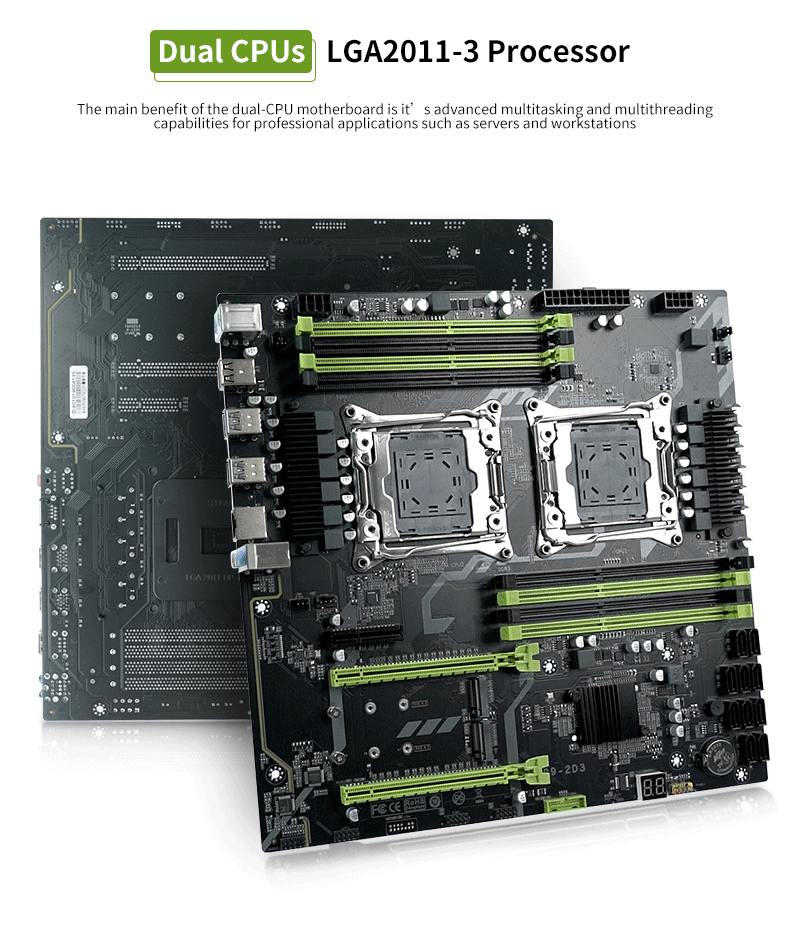

Supports Intel LGA2011-3 processors
Supports four channels of DDR3 DIMM memory6× SATA ; 4× sSATA socket
2x M.2 solt
6xUSB for the rear IO

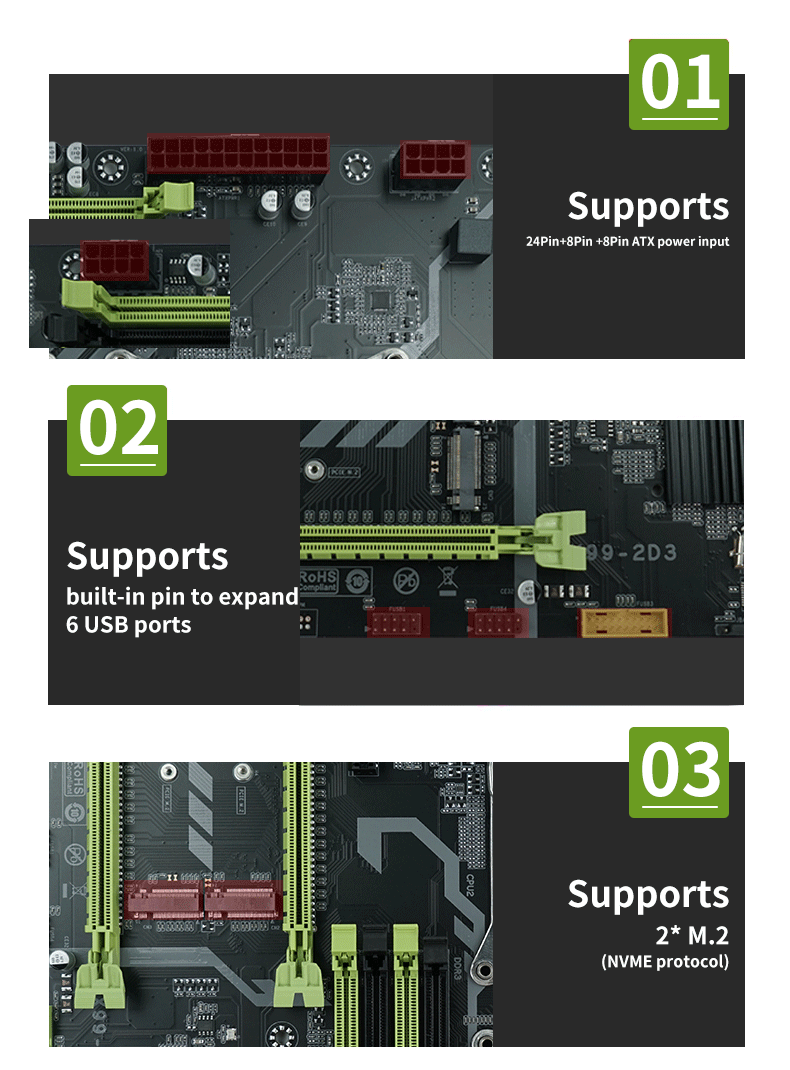

The built-in pin can be extended to 6 USB ports
1 x Gigabit NIC, supports PXE and wake up on network
3 x PCIe solt
Support 24Pin+8Pin +8Pin ATX power input

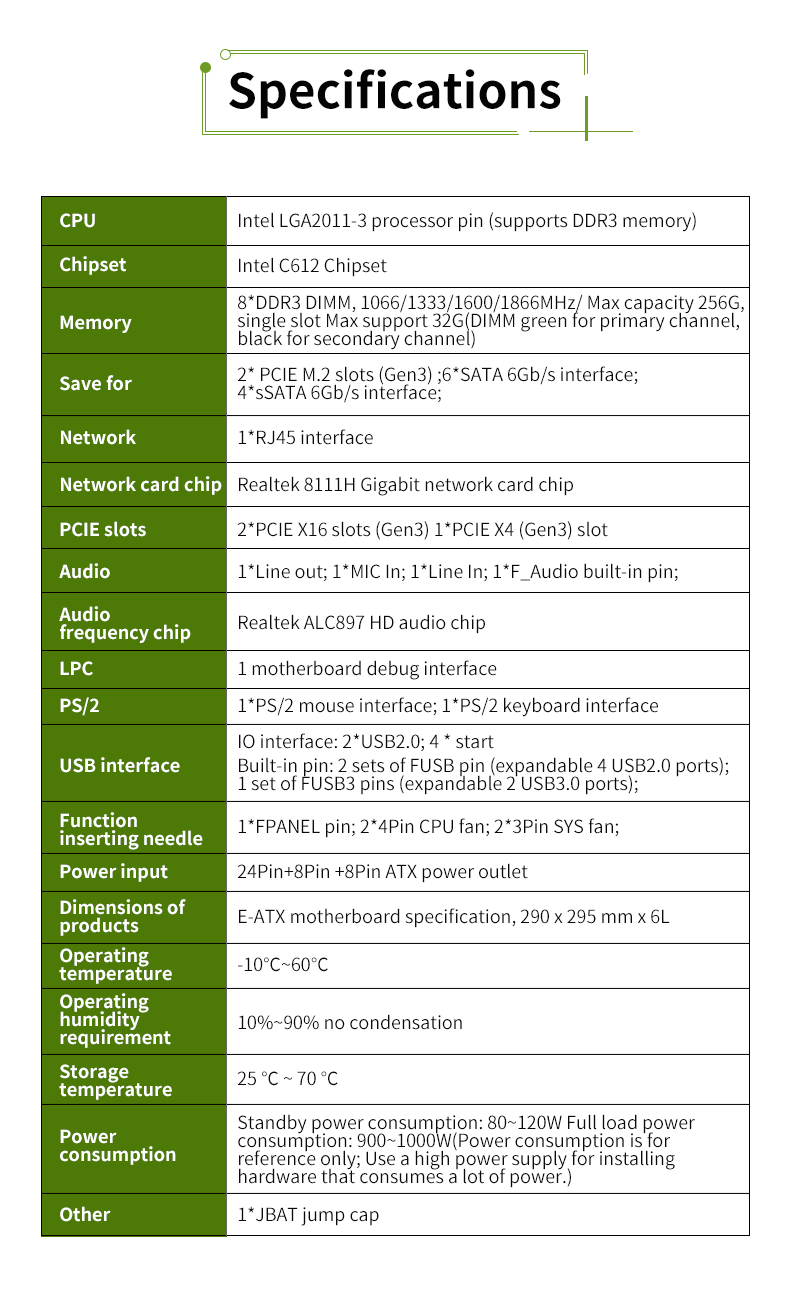

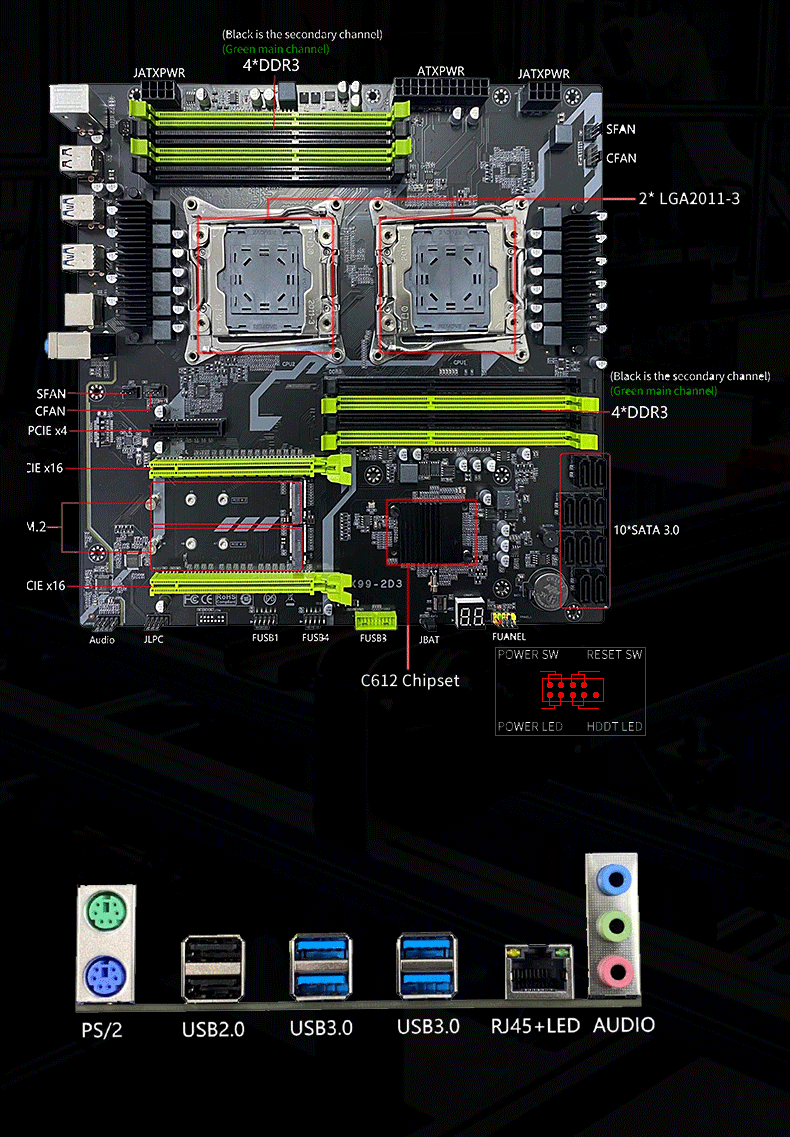

PRODUCT PROFILE
Product name		X99-2D3 V1.0 desktop motherboard
CPU		Intel LGA2011-3 Series Processor South
South Bridge		Intel C612
RAM	Technology	8 x DDR3 DIMM, 1066/1333/1600/1866 MHZ
	Max Capacity	256GB
	RAM Slot	8*DDR3 DIMM

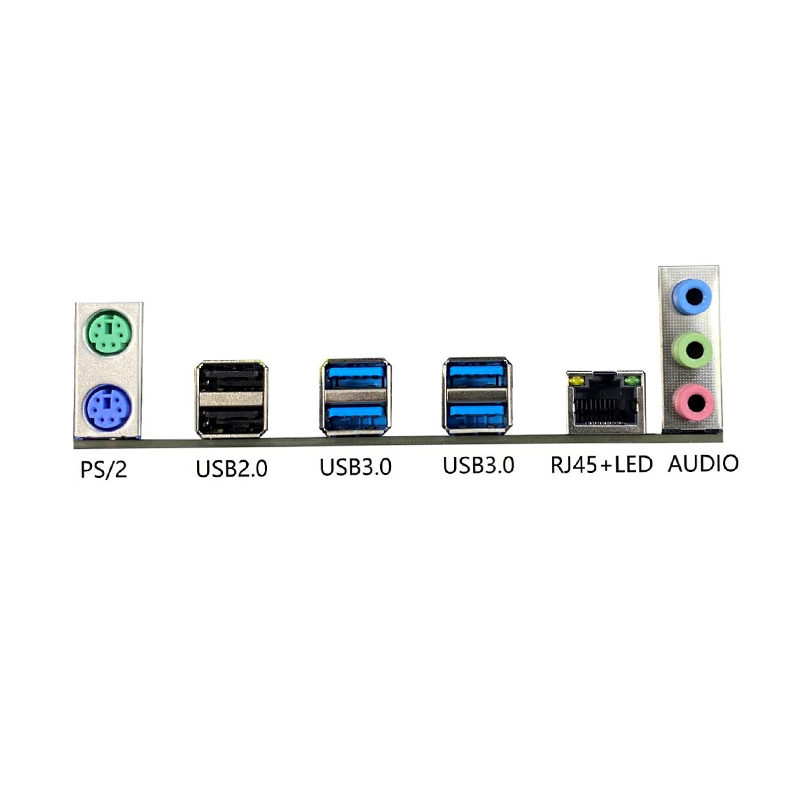

Rear I/O	PS/2	1*PS2 Mouse keyboard interface
	USB	2USB2.0, 4USB3.0
	Audio	1Line out；1MIC In；1Line In；1F_Audio Built-in pin
	SATA	4× sSATA socket
	PCIe	2PCIE X16 slot（Gen3）; 1PCIE X4（Gen3）solt
	M.2	2x M.2 solt
	ATXPWR	24 Pin + 8 Pin + 8Pin ATX power outlet
Dimension	Size	E-ATX Main board specification,290 x 295 mm x 6L


Features：

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.

Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China.

Our factory was established in 2003 and has a history of 20 years. Since its establishment,

we have focused on the production and research and development of computer motherboards,

graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years.

Office display

The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers.

Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe,

and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders.

We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products.

Customer group photo
