▲Support for the Intel Xeon E5 LGA2011-3 processor ▲3 SATA interfaces (3 SATA 3.0)
▲High-speed DDR 3 four-channel memory slot: support
1066 / 1333 / 1600 / 1866 MHz, maximum capacity of
128G memory
▲Support for 5.1 sound channel ALC897 chip
▲Support 1 PCIE M.2 and SATA M.2 (with one interface)
▲Supports 4 USB3.0 and 6 USB2.0
▲Support 2 PCIE interfaces (1 PCIE-X16,1 X1)
▲Support for RJ 45 Gigabit network card interface ▲Support 6-phase CPU power supply, 4-layer CPB
| PRODUCT PROFILE | |||

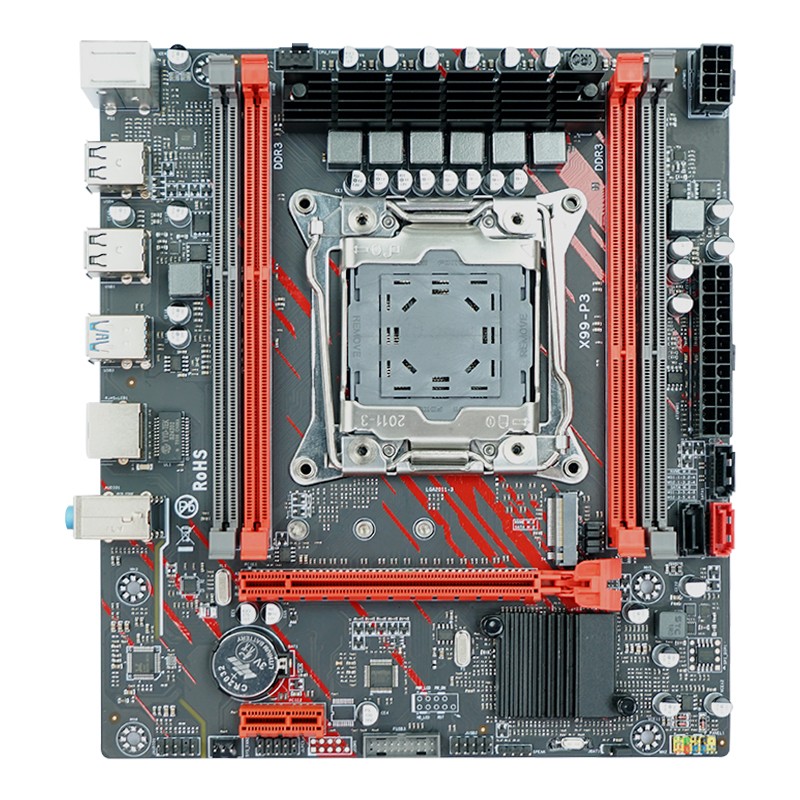

| PRODUCT NAME | X99-P3-V5.0 desktop motherboard | ||
| CPU | Intel Xeon E5 LGA2011-3 Processor of needle and foot | ||
| South Bridge | C612 Chipset series | ||
| RAM | Technology | four channels DDR3 1066/1333/1600/1866MHz | |
| Max Capacity | 128GB | ||
| RAM Slot | 4 * 240 PIN DDR3/ECC | ||
| Rear I/O | PS/2 | 1 KB interface and 1 MS interface | |
| Ethernet | 1 Gigabit net card | ||
| Audio | 1*(Mic-in, Line-out，Line-in) | ||
| USB | 2*USB3.0；4*USB2.0 | ||
| internal connector | USB2.0 | 2 (one FUSB can be connected to two USB 2.0 interfaces); | |
| USB3.0 | 2 (one FUSB can be connected to two USB 3.0 interfaces); | ||
| ATXPWR | 1 standard 1 x 8 PIN power outlet; 1 standard 1x24PIN power outlet | ||
| JAudio | 1*2 x 5 Pin standard pin12 x 5 Pin standard pin | ||
| JLPC | 1*2 x 5 Pin standard pin | ||
| Fan interface | 2 (1 CPU FAN and 1 SYS FAN) | ||
| M.2 | 1 NEMV M.2 and NGFF M.2 (with one interface) | ||
| SATA | 3 (3 SATA 3.0 speed interfaces) | ||
| FPANEL | 1 switch control panel | ||
| PCIE | 2*（1*PCIE x16 port,1*PCIE X1） | ||
| environment | temperature range | work environment | Storage environment |
| Temperature:0~50℃ Humidity: 5%~95% | Temperature: -20~70℃ Humidity: 5%~95% | ||
| Dimension | size | 190 mm x 216 mm | |
| Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China. |
| Our factory was established in 2003 and has a history of 20 years. Since its establishment, |
| we have focused on the production and research and development of computer motherboards, |
| graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years. |
| Office display |
| The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers. |
| Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe, |
| and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders. |
| We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products. |
| Customer group photo |
| Product advantages: |
| Well-cooling system with Good thermal material aluminum base for motherboard |
| All-solid electric capacitor for motherboard |
| PCB Copper plating technology for Motherboard |
| Independent power supply designed for Motherboard CPU |
| Zero burning protection circuit for Motherboard |
| Dual safety device stabilize voltage and current for load data uniformly |
| Company advantages |
| 23 YEARS Motherboard FACTORY |
| ECO-ENVIRONMENT MATERIAL |
| CE ROHS FCC ISO CERTIFICATES |
| 50+ R8D DESIGNER TEAM |
| FAST DELIVERY SHIPPING |
| GUARAMTEED AFTER-SALE SERVICE |
