▲Support for the Intel Xeon E5 LGA2011-V3 pin series processor
▲Supports 4 SATA interfaces, 2 USB3.0, and 8 USB2.0
▲High-speed DDR 34-channel memory slot: support 1066 / 1333
/ 1600 /1866 MHz, a maximum capacity of 128G memory
▲Support 5.1 sound channel ALC897 sound card chip
▲Support 2*M.2 SLOT
▲High-speed USB3.0 interface transmission speed is increased
again
▲Support for the PCIE expansion slot * 3
▲Support for RJ 45 Gigabit network card interface
▲Support the 6-layer PCB floor plate, with the 6-phase power
supply
| PRODUCT PROFILE | |||

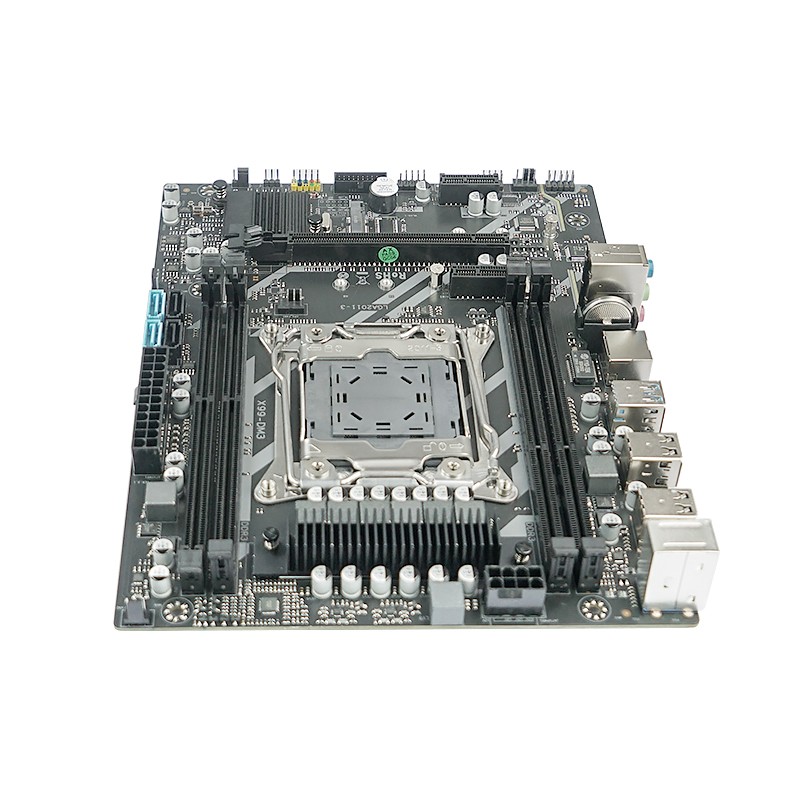

| Product Name | X99-DM3-V3.1 desktop motherboard | ||
| CPU | The Intel Xeon E5 LGA2011-V3 pin-series processor | ||
| South Bridge | H81 Chipset Series | ||
| RAM | Technology | Four-channel DDR3 1066 / 1333 / 1600 / 1866 MHz | |
| Max Capacity | 128GB | ||
| Memory Slot | 4 * 240 PIN DDR3 | ||
| Rear I/O | PS/2 | 1 KB interface and 1 MS interface | |
| Ethernet | 1*Realtek Gigabit net card | ||
| Audio | 1*(Mic-in, Line-out，Line-in) | ||
| USB | 2*USB 3.0；4*USB 2.0 | ||
| internal connector | USB2.0 | 4 (one FUSB can be connected to two USB 2.0 interfaces); | |
| CFAN | 14 Pin pin insert | ||
| SFAN | 3*（1*4Pin+2*3Pin） | ||
| PCIe | 3*（1*PCIe x16；2*PCIe x1） | ||
| ATXPWR | 1 standard 1 x 8 PIN power outlet; 1 standard 1x24PIN power outlet | ||
| JAudio | 12 x 5 Pin pin insert | ||
| SATA | 4 SATA interfaces (2 SATA 3.0,2 SATS 2.0) | ||
| M.2 | 2（1 PCIe （Gen3*4）+1 SATA ） | ||
| environment | temperature range | work environment | Storage environment |
| Temperature:0~50℃ Humidity: 5%~95% | Temperature: -20~70℃ Humidity: 5%~95% | ||
| Dimension | size | 185 mm x 236 mm | |
| Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China. |
| Our factory was established in 2003 and has a history of 20 years. Since its establishment, |
| we have focused on the production and research and development of computer motherboards, |
| graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years. |
| Office display |
| Product advantages: |
| Well-cooling system with Good thermal material aluminum base for motherboard |
| All-solid electric capacitor for motherboard |
| PCB Copper plating technology for Motherboard |
| Independent power supply designed for Motherboard CPU |
| Zero burning protection circuit for Motherboard |
| Dual safety device stabilize voltage and current for load data uniformly |
| Company advantages |
| 23 YEARS Motherboard FACTORY |
| ECO-ENVIRONMENT MATERIAL |
| CE ROHS FCC ISO CERTIFICATES |
| 50+ R8D DESIGNER TEAM |
| FAST DELIVERY SHIPPING |
| GUARAMTEED AFTER-SALE SERVICE |
