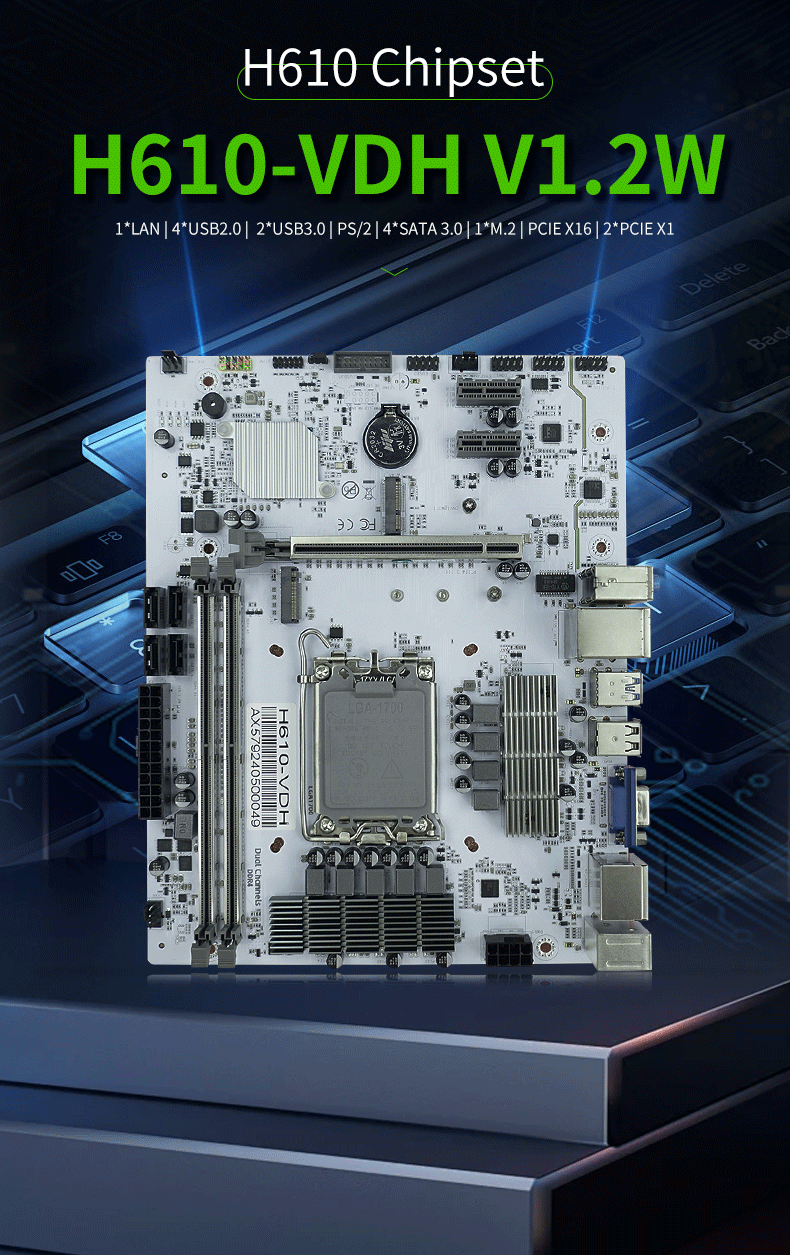

H610 VDH V1.2W Intel Core 12th 13th 14th 19 17 15 13 Pentium LGA1700 Desktop Motherboard

▲Supports Intel Core 12th 13th 14th generation processors,19 17 15 13 Pentium,LGA1700 socket processor
▲Supports dual channel DDR4 memory
▲1 M.2 (NVME protocol)
▲Supports 4 * SATA interfaces
▲The rear IO provides 2 USB3.0 and 4 USB2.0 interfaces
·Built-in pins allow for expansion of 2 USB3.0 and 2 USB2.0 interfaces
▲1 Gigabit network card, supporting PXE and network wake up functions
▲6 layer PCB base plate, 7+1+1 phase power supply
▲1 * PCIE X16 + 2 * PCIE X1 slots ▲1*CFAN+2*SFAN
▲Support Windows 10, Windows 1

EMAIL


PRODUCT PROFILE

 Product name

H610-VDH V1.2W Desktop Motherboard

CPU

Intel Core 12th/13th/14th generation processors 19/17/15/13/Pentium,LGA1700 socket processor

South Bridge

H610 Chipset

RAM

Technology

Dual-channel DDR4

Max Capacity

64GB

RAM Slot

2*DDR4 DIMM


USB

2*USB3.2;4*USB2.0

Audio

1*Line out, 1*MIC In, 1*Line in; 1*F_Audio Built-in jack


SATA

4*(SATA3.0)

ATXPWR

24pin + 8pin ATX power socket

Dimension

Size190mm x 240mm


















Features:

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.



Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China.

Our factory was established in 2003 and has a history of 20 years. Since its establishment,

we have focused on the production and research and development of computer motherboards,

graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years.

Office display


The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers.

Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe,

 and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders.

We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products.

Customer group photo



Work presentation


Workflow



Product advantages:

  • Well-cooling system with Good thermal material aluminum base for motherboard

  • All-solid electric capacitor for motherboard

  • PCB Copper plating technology for Motherboard

  • Independent power supply designed for Motherboard CPU

  • Zero burning protection circuit for Motherboard

  • Dual safety device stabilize voltage and current for load data uniformly

Company advantages

  • 23 YEARS Motherboard FACTORY

  • ECO-ENVIRONMENT MATERIAL

  • CE ROHS FCC ISO CERTIFICATES

  • 50+ R8D DESIGNER TEAM

  • FAST DELIVERY SHIPPING

  • GUARAMTEED AFTER-SALE SERVICE
