X99 XD4 V2.0 Intel LGA2011 3 processors C612 Desktop Motherboard

X99 XD4 V2.0 Intel LGA2011 3 processors C612 Desktop Motherboard

Support for LGA2011 3 Intel series processors
Supports a four channel DDR4 DIMM memory slot
6* SATA 3.0 socket; 2* M.2 slot
The rear IO provides 4* USB2.0; 4* USB3.0
Built-in pins extend to 2* USB2.0; 2* USB3.0
1* TPM pin, 1* M. 2 WIFI interface
1* Gigabit network card, support PXE and network wake-up function
1* PCIEx1 slot, 1* PCIEx16 slot, 1* PCIEx4 slot
Supports 24 Pin + 8Pin ATX power input
Windows 7,Windows 10,Windows 11

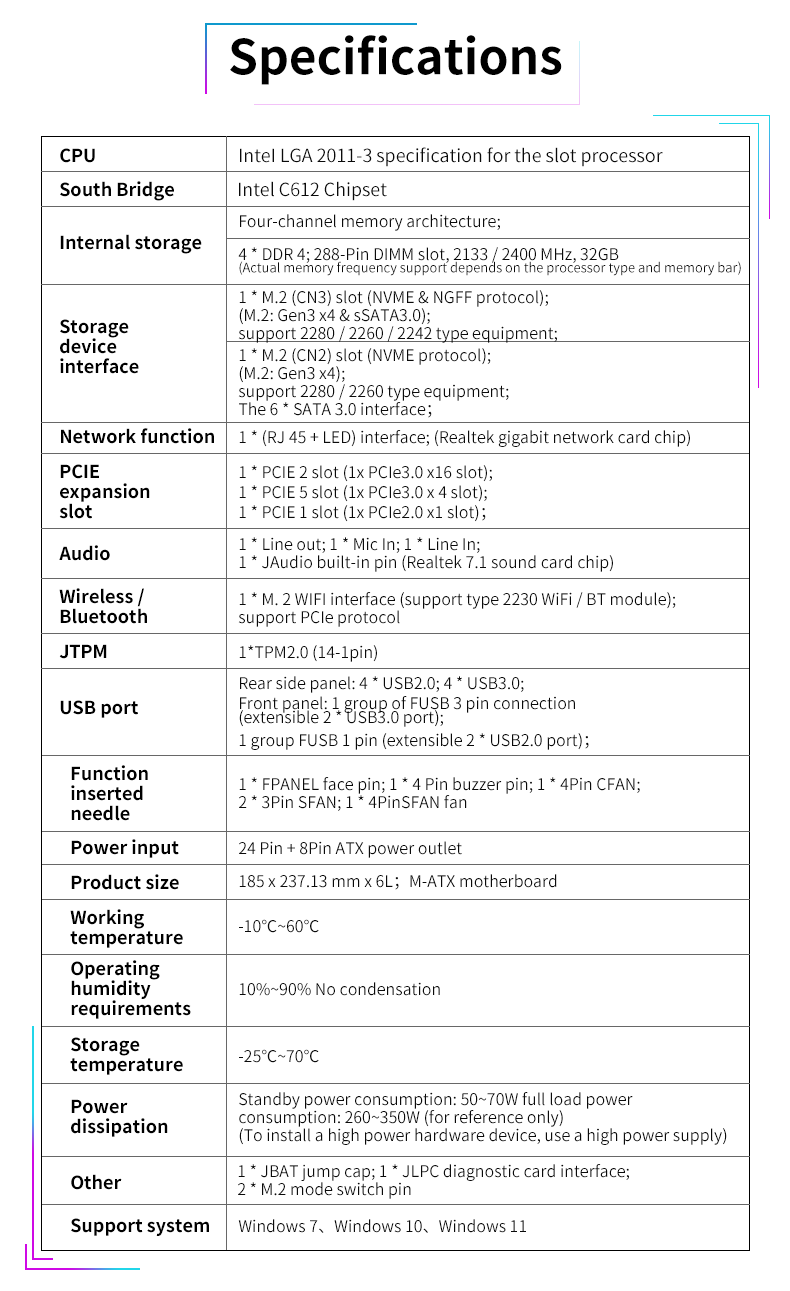

PRODUCT PROFILE
Product name		X99-XD4-V2.0 Desktop Motherboard
CPU		InteI LGA2011-3 specification for the slot processor
South Bridge		Intel C612 Chipset
RAM	Technology	4 * DDR 4; 288-Pin DIMM slot, 2133 / 2400 MHz, 32GB
	Max Capacity	128GB
	RAM Slot	4 * DDR 4
	USB	4 * USB2.0; 4 * USB3.0
	Audio	1 * Line out; 1 * Mic In; 1 * Line In; 1 * Audio built-in pin (Realtek 7.1 sound card chip)
	SATA	6* SATA 3.0
	ATXPWR	24 Pin + 8Pin ATX power input
Dimension	Size	185 mm x 237.13 mm


Features：

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.

Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China.

Our factory was established in 2003 and has a history of 20 years. Since its establishment,

we have focused on the production and research and development of computer motherboards,

graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years.

Office display

The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers.

Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe,

and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders.

We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products.
