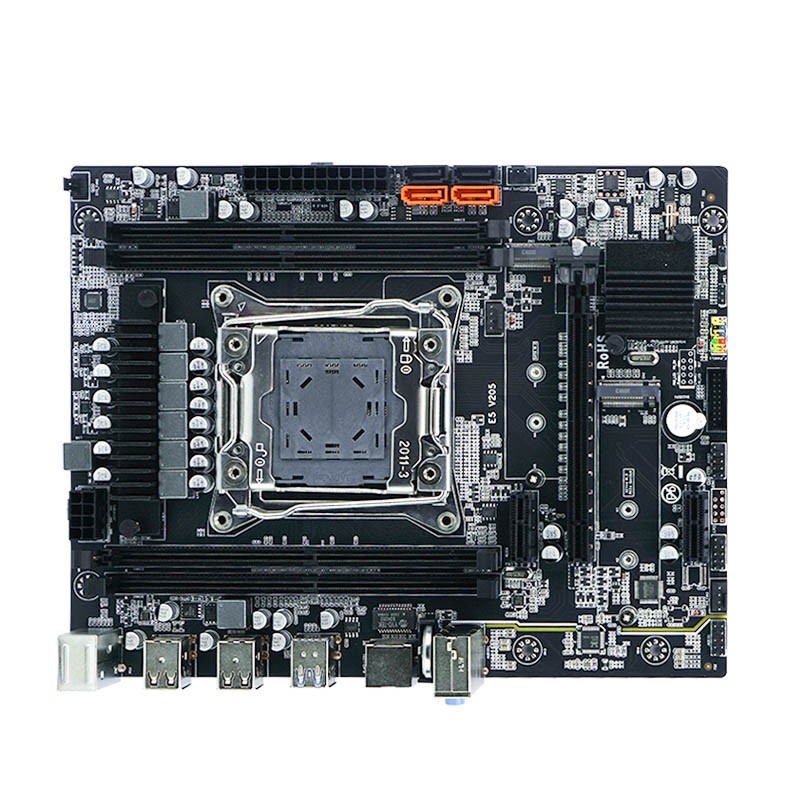

E5-V205 H81 LGA2011-3 Desktop Motherboard

Model: E5 V205
CPU:Intel Xeon E5 LGA2011-3 Series Processor
South Bridge:H81 Chipset Series
RAM:Four-channel DDR4 2133MHZ/2400MHZ/2666MHZ
Max Capacity:128GB
RAM Slot :4 * 240 PIN DDR4/ECC
PS/2:1 KB interface and 1 MS interface
USB:2*USB3.0;4*USB2.0
Ethernet:1 Realtek Gigabit network card
Audio:1*(Mic-in, Line-out、Line-in)
PCIe:3*(1 PCIe x16、2 PCIe x1)
M.2:1*PCIe M.2、1*SATA M.2
ATXPWR :1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket
Audio:1 x 2x5Pin
Dimension:Size 185mm x236mm

EMAIL


PRODUCT PROFILE

 Product name

X99 V205 desktop motherboard

CPU

Intel Xeon E5 LGA2011-3

South Bridge

H81 Chipset Series

RAM

Technology

Four-channel DDR4 2133MHZ/2400MHZ/2666MHZ

Max Capacity

128GB

RAM Slot

* 240 PIN DDR4/ECC

Rear I/O

PS/2

1 KB interface and 1 MS interface

USB

2*USB3.0;4*USB2.0

Ethernet

1 Realtek Gigabit network card

Audio

1*(Mic-in, Line-out、Line-in)

Internal Connector

USB 2.0

2*(One FUSB can transfer out two USB 2.0 interfaces);

USB 3.0

2*(One FUSB can transfer out two USB 3.0 interfaces);

COM

1

PCIe

3*(1 PCIe x16、2 PCIe x1)

M.2

1*PCIe M.2、1*SATA M.2

ATXPWR

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket

Audio1 x 2x5Pin

Dimension

Size185mm x236mm




X99 V205 V1.0.png

Features:

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.



Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China.

Our factory was established in 2003 and has a history of 20 years. Since its establishment,

we have focused on the production and research and development of computer motherboards,

graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years.

Office display


The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers.

Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe,

 and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders.

We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products.

Customer group photo



Work presentation


Workflow



Product advantages:

  • Well-cooling system with Good thermal material aluminum base for motherboard

  • All-solid electric capacitor for motherboard

  • PCB Copper plating technology for Motherboard

  • Independent power supply designed for Motherboard CPU

  • Zero burning protection circuit for Motherboard

  • Dual safety device stabilize voltage and current for load data uniformly

Company advantages

  • 23 YEARS Motherboard FACTORY

  • ECO-ENVIRONMENT MATERIAL

  • CE ROHS FCC ISO CERTIFICATES

  • 50+ R8D DESIGNER TEAM

  • FAST DELIVERY SHIPPING

  • GUARAMTEED AFTER-SALE SERVICE
