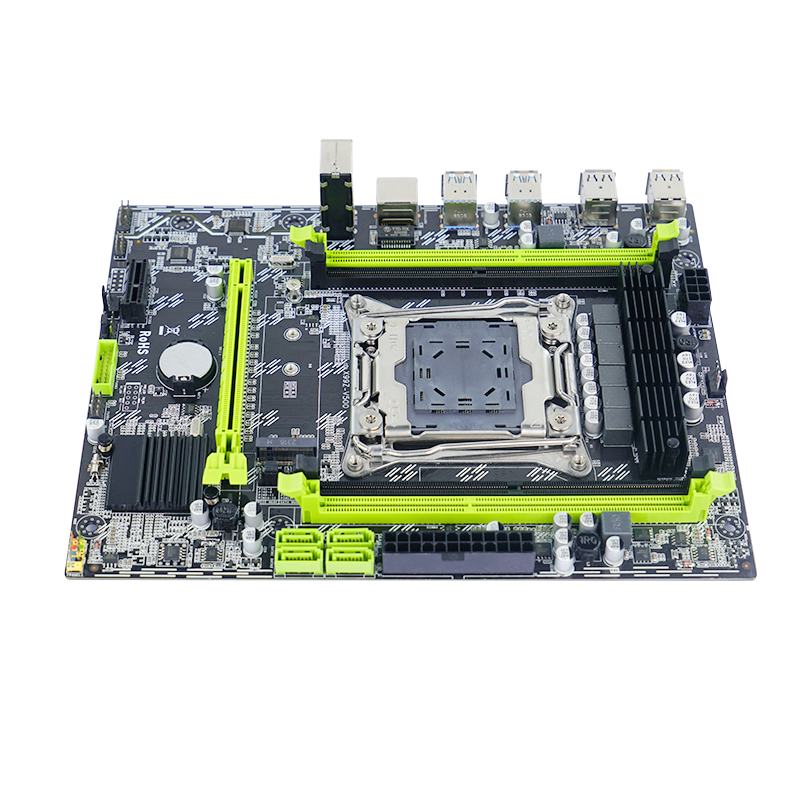

X99Z-V500 X99 LGA2011-3 Desktop Motherboard

X99-X34 V1.1
CPU: Intel E5 V3/V4、i7、58xx/59xx Series Processor
South Bridge:X99 Chipset Series
RAM:Dual Channel DDR3/DDR4 DDR3 1066/1333/1600/1866MHz DDR4 2133/2400/2666/3000/3200MHZ
Max:64GB
RAM Slot :2 * 240 PIN ECC/DDR3;2 * 288PIN ECC/DDR4
USB:4*USB 3.0;4*USB 2.0
Ethernet:1 Realtek Gigabit network card
PCIe:2*(1*PCIe x16;1*PCIe x1)
M.2:1 MINI PCIE,can pass through MSEL select to support PCIE M. 2 or SATA M.2
ATXPWR :1 standard 1 x 8 PIN power outlet; 1 standard 1x24PIN power outlet
Dimension:187 mm x 237 mm

EMAIL


PRODUCT PROFILE

 Product name

X99-X34 V1.1desktop motherboard

CPU

Intel E5 V3/V4、i7、58xx/59xx Series Processor

South Bridge

X99 Chipset Series

RAM

Technology

Dual Channel DDR3/DDR4 DDR3 1066/1333/1600/1866MHz DDR4 2133/2400/2666/3000/3200MHZ

Max Capacity

64GB

RAM Slot

2 * 240 PIN ECC/DDR3;2 * 288PIN ECC/DDR4

Rear I/O

PS/2

1 KB interface and 1 MS interface

USB

4*USB 3.0;4*USB 2.0

Ethernet

1*Gigabit network adapter port

Audio

1*(Mic-in, Line-out、Line-in)

Internal Connector

USB 2.0

2(1 FUSB Can be transferred to two USB 2.0 port);

USB 3.0

2*(1 FUSBCan be transferred to two USB 3.0 port);



PCIe

2*(1*PCIe x16;1*PCIe x1)

M.2

1 MINI PCIE,can pass through MSEL select to support PCIE M. 2 or SATA M.2

ATXPWR

1 standard 1 x 8 PIN power outlet; 1 standard 1x24PIN power outlet

Audio1 x 2x5Pin

Dimension

Size187 mm x 237 mm




































Features:

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.



Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China.

Our factory was established in 2003 and has a history of 20 years. Since its establishment,

we have focused on the production and research and development of computer motherboards,

graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years.

Office display


The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers.

Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe,

 and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders.

We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products.

Customer group photo



Work presentation


Workflow



Product advantages:

  • Well-cooling system with Good thermal material aluminum base for motherboard

  • All-solid electric capacitor for motherboard

  • PCB Copper plating technology for Motherboard

  • Independent power supply designed for Motherboard CPU

  • Zero burning protection circuit for Motherboard

  • Dual safety device stabilize voltage and current for load data uniformly

Company advantages

  • 23 YEARS Motherboard FACTORY

  • ECO-ENVIRONMENT MATERIAL

  • CE ROHS FCC ISO CERTIFICATES

  • 50+ R8D DESIGNER TEAM

  • FAST DELIVERY SHIPPING

  • GUARAMTEED AFTER-SALE SERVICE
