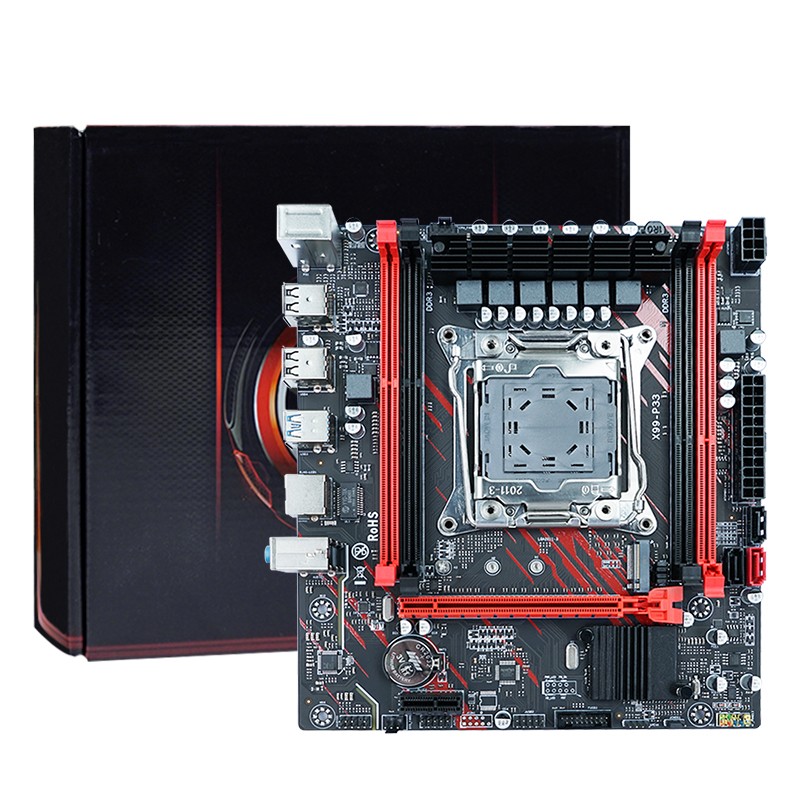

X99-P33 H81 LGA2011-3 Desktop Motherboard

X99-P33 H81 LGA2011-3 Desktop Motherboard

X99-P33-V1.1
CPU：Intel Xeon E5 LGA2011-3 pin series processor
South Bridge：H81 Chipset Series
RAM：Four-channel DDR3 1066 / 1333 / 1600 / 1866 MHz
Max：128GB
RAM Slot ： 4 * 240 PIN DDR3/ECC
PS/2 ：1 KB interface and 1 MS interface
USB：2*USB3.0；4*USB2.0
SATA：3 (1 SATA 3.0 speed interface, 2 SATA 2.0 speed interfaces)
Ethernet：1 Realtek Gigabit network card
PCIe：2*（1*PCIE x16,1*PCIE X1）
M.2：1 NVME M.2 and NGFF M.2 (with one interface)
ATXPWR ：1 standard 1 x 8 PIN power outlet; 1 standard 1x24PIN power outlet
Dimension：190mm x 216mm

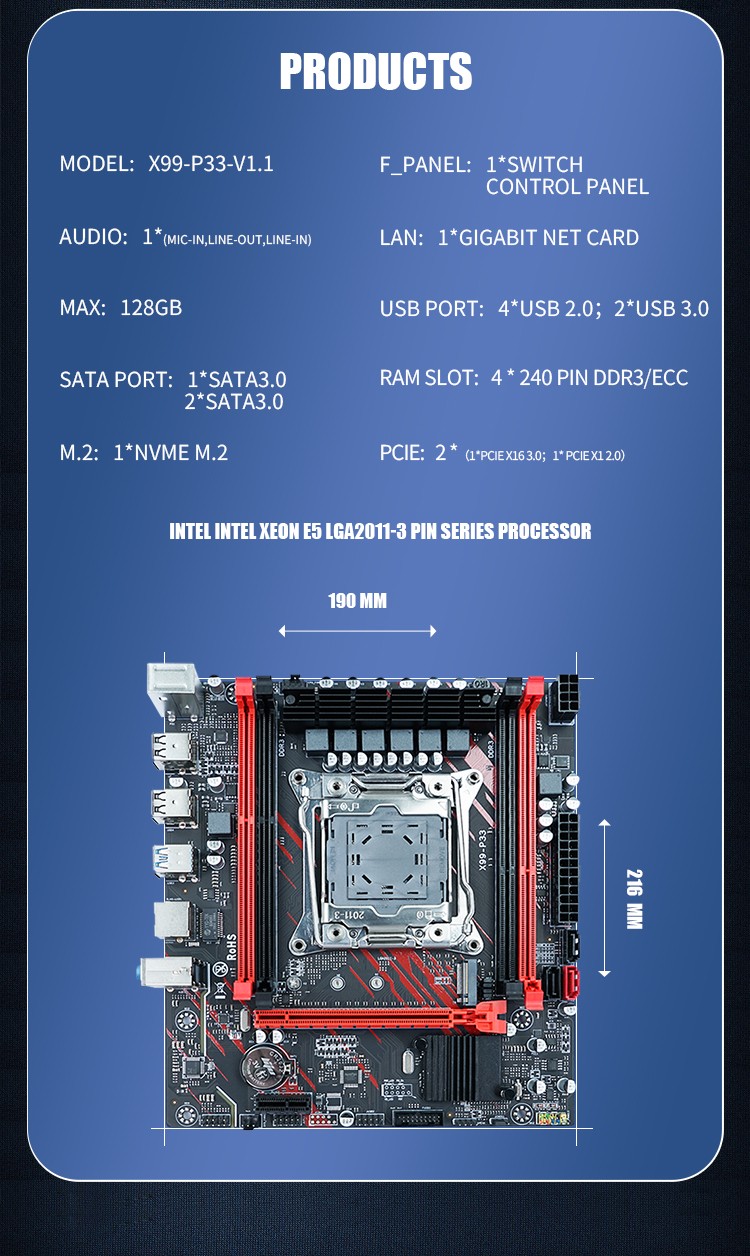

PRODUCT PROFILE
Product name		X99-P33-V1.1 desktop motherboard
CPU		Intel Xeon E5 LGA2011-3 pin series processor
South Bridge		H81 Chipset Series
RAM	Technology	Four-channel DDR3 1066 / 1333 / 1600 / 1866 MHz
	Max Capacity	128GB
	RAM Slot	4 * 240 PIN DDR3/ECC
Rear I/O	PS/2	1 KB interface and 1 MS interface
	USB	2USB3.0；4USB2.0
	Ethernet	1 Gigabit net card
	Audio	1*(Mic-in, Line-out、Line-in)
Internal Connector	USB 2.0	4 (one FUSB transfers two USB 2.0 interfaces)

	SATA	3 (1 SATA 3.0 speed interface, 2 SATA 2.0 speed interfaces)
	PCIe	2（1PCIE x16,1*PCIE X1）
	M.2	1 NVME M.2 and NGFF M.2 (with one interface)
	ATXPWR	1 standard 1 x 8 PIN power outlet; 1 standard 1x24PIN power outlet
	Audio	1 x 2x5Pin
Dimension	Size	190mm x 216mm

Features：

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.

Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China.

Our factory was established in 2003 and has a history of 20 years. Since its establishment,

we have focused on the production and research and development of computer motherboards,

graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years.

Office display

The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers.

Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe,

and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders.

We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products.

Customer group photo
