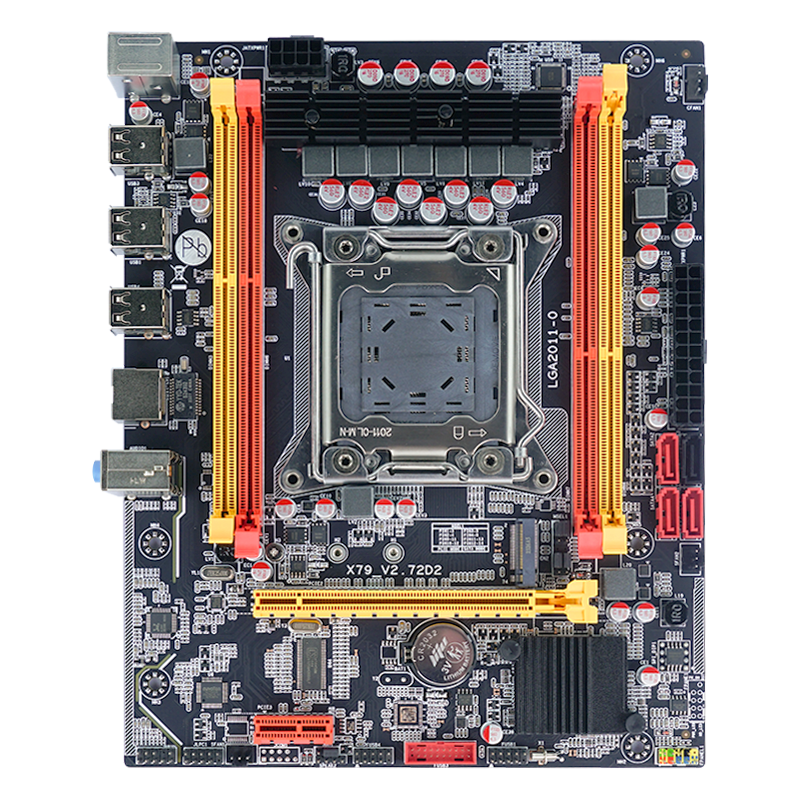

X79-V2.72D2 X79 LGA 2011 Desktop Motherboard

X79-V2.72D2 X79 LGA 2011 Desktop Motherboard

X79-V2.72D2
CPU：Xeon E5 LGA 2011PIN Series Processor

South Bridge：X79 Chipset Series
RAM：Dual-Channel DDR3 1066/1333/1600/1866MHz
Max 64GB
RAM Slot ：4 * 240 PIN ECC/DDR3
USB： 6*USB 2.0
PS/2 ：1*(PS/2 Mouse，PS/2 Keyboard)
SATA：1*SATA3.0, 3*SATA2.0
Ethernet：1*Realtek Gigabit network card
PCIe：2*（1*PCIE x16，1*PCIE x1）
M.2：1* M.2(PCIE/SATA are switchable）
ATXPWR ：1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket
Dimension：187 mm x 237 mm

PRODUCT PROFILE
Product name		X79-V2.72D2 desktop motherboard
CPU		Xeon E5 LGA 2011PIN Series Processor
South Bridge		X79 Chipset Series
RAM	Technology	Dual-Channel DDR3 1066/1333/1600/1866MHz
	Max Capacity	64GB
	RAM Slot	4 * 240 PIN ECC/DDR3
Rear I/O	PS/2	1*(PS/2 Mouse，PS/2 Keyboard)
	USB	6*USB 2.0
	Ethernet	1*Realtek Gigabit network card
	Audio	1*(Mic-in, Line-out、Line-in)
Internal Connector	USB 2.0	6(1FUSB Can be transferred to 2*USB 2.0),（USB 3.0 Optional)

	SATA	1SATA3.0, 3SATA2.0
	PCIe	2（1PCIe x16； 1*PCIe x1）
	M.2	1* M.2(PCIE/SATA are switchable）
	ATXPWR	1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket
	Audio	1 x 2x5Pin
Dimension	Size	187 mm x 237 mm

Features：

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.

Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China.

Our factory was established in 2003 and has a history of 20 years. Since its establishment,

we have focused on the production and research and development of computer motherboards,

graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years.

Office display

The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers.

Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe,

and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders.

We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products.
