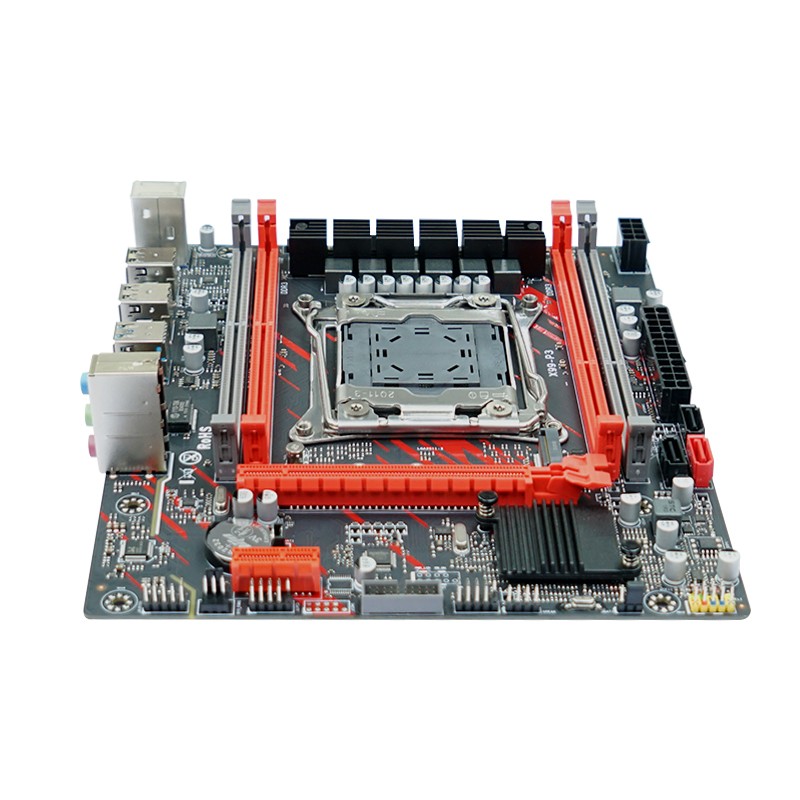

X99-P3 C612 LGA2011-3 Desktop Motherboard

X99-P3-V5.0
CPU:Intel Xeon E5 LGA2011-3 Processor of needle and foot
South Bridge:C612 Chipset series
RAM:four channels DDR3 1066/1333/1600/1866MHz
Max:128GB
RAM Slot :4 * 240 PIN DDR3/ECC
USB:2*USB3.0;4*USB2.0
SATA:3 (3 SATA 3.0 speed interfaces)
Ethernet:1 Gigabit net card
PCIe:2*(1*PCIE x16 port,1*PCIE X1)
M.2:1 NEMV M.2 and NGFF M.2 (with one interface)
ATXPWR :1 standard 1 x 8 PIN power outlet; 1 standard 1x24PIN power outlet
Dimension:190mm x 216mm

EMAIL


PRODUCT PROFILE

 Product name

X99-P3-V5.0 desktop motherboard

CPU

Intel Xeon E5 LGA2011-3 Processor of needle and foot

South Bridge

C612 Chipset series

RAM

Technology

four channels DDR3 1066/1333/1600/1866MHz

Max Capacity

128GB

RAM Slot

4 * 240 PIN DDR3/ECC

Rear I/O

PS/2

1 KB interface and 1 MS interface

USB

2*USB3.0;4*USB2.0

Ethernet

1 Gigabit net card

Audio

1*(Mic-in, Line-out、Line-in)

Internal Connector

USB 2.0

2 (one FUSB can be connected to two USB 2.0 interfaces);

USB3.0

2 (one FUSB can be connected to two USB 3.0 interfaces);

SATA

3 (3 SATA 3.0 speed interfaces)

PCIe

2*(1*PCIE x16 port,1*PCIE X1)

M.2

1 NEMV M.2 and NGFF M.2 (with one interface)

ATXPWR

1 standard 1 x 8 PIN power outlet; 1 standard 1x24PIN power outlet

Audio1 x 2x5Pin

Dimension

Size190mm x 216mm



































Features:

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.



Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China.

Our factory was established in 2003 and has a history of 20 years. Since its establishment,

we have focused on the production and research and development of computer motherboards,

graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years.

Office display


The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers.

Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe,

 and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders.

We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products.

Customer group photo



Work presentation


Workflow



Product advantages:

  • Well-cooling system with Good thermal material aluminum base for motherboard

  • All-solid electric capacitor for motherboard

  • PCB Copper plating technology for Motherboard

  • Independent power supply designed for Motherboard CPU

  • Zero burning protection circuit for Motherboard

  • Dual safety device stabilize voltage and current for load data uniformly

Company advantages

  • 23 YEARS Motherboard FACTORY

  • ECO-ENVIRONMENT MATERIAL

  • CE ROHS FCC ISO CERTIFICATES

  • 50+ R8D DESIGNER TEAM

  • FAST DELIVERY SHIPPING

  • GUARAMTEED AFTER-SALE SERVICE
