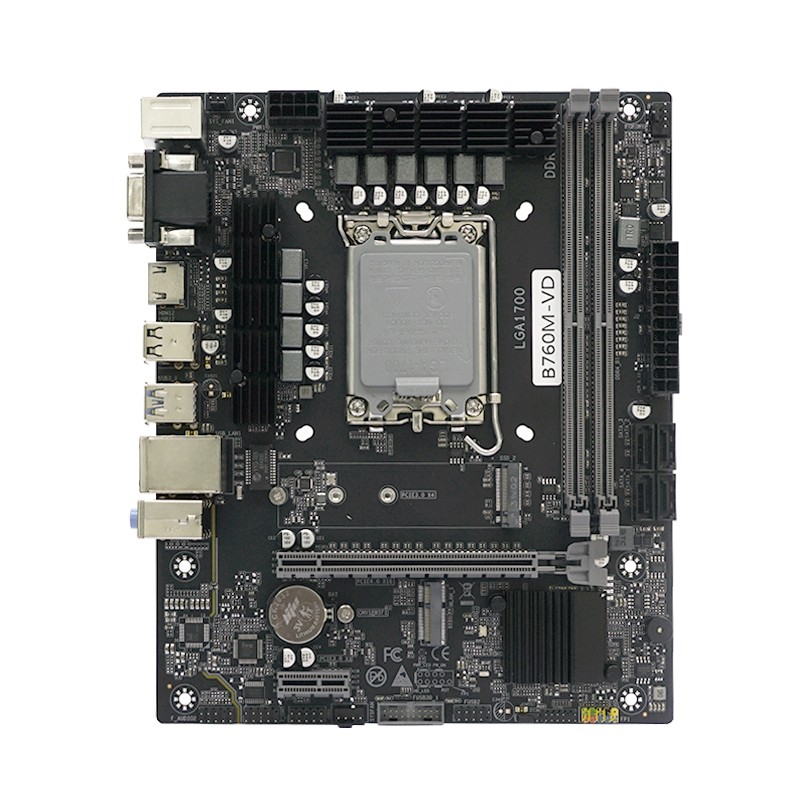

B760M-VD B760 LGA1700 Desktop Motherboard - 副本

Model: B760M-VD
CPU:Intel Core 12/13th I9/I7/I5/I3/Pentium LGA 1700 pin
South Bridge:B760 Chipset Series
RAM:Dual channel DDR4 2133/2400/2666/3000/3200/3600 MHZ
Max Capacity:64GB (32G*2)
RAM Slot: 2 * 288 PIN DDR4
PS/2:1*KB port+1*MS port
USB:4* USB 2.0;2* USB3.1
Ethernet:1 Realtek Gigabit network card
Audio:1*(Mic-in, Line-out、Line-in)
PCIe:3*(1 PCIe x16、2 PCIe x1)
M.2:1*PCIe X16 4.0;1*PCIe X1 3.0
ATXPWR :1 standard 8PIN power outlet; 1 standard 24PIN
Audio:1*(Mic-in, Line-out、Line-in)
Dimension:Size 180mm * 218mm

EMAIL


PRODUCT PROFILE

 Product name

B760M-VD desktop motherboard

CPU

Intel Core 12/13th I9/I7/I5/I3/Pentium LGA 1700 pin

South Bridge

B760 Chipset Series

RAM

Technology

Dual channel DDR4 2133MHZ/2400MHZ/2666MHZ

Max Capacity

64GB

RAM Slot

* 288 PIN DDR4

Rear I/O

PS/2

1*KB port+1*MS port

USB

2*USB3.0;4*USB2.0

Ethernet

1 Realtek Gigabit network card

Audio

1*(Mic-in, Line-out、Line-in)

Internal Connector

USB 2.0

2*(One FUSB can transfer out two USB 2.0 interfaces);

USB 3.0

2*(One FUSB can transfer out two USB 3.0 interfaces);

COM

1*2x5PIN

PCIe

1*PCIe X16 4.0;1*PCIe X1 3.0

M.2

1* (PCIe GEN4 X4 bandwidth)

ATXPWR

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket

Audio

1*(Mic-in, Line-out、Line-in)

Dimension

Size180mm x218mm














B760M-VD-V1.11规格书 英文版_01.png

Features:

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.



Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China.

Our factory was established in 2003 and has a history of 20 years. Since its establishment,

we have focused on the production and research and development of computer motherboards,

graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years.

Office display


The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers.

Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe,

 and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders.

We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products.

Customer group photo



Work presentation


Workflow



Product advantages:

  • Well-cooling system with Good thermal material aluminum base for motherboard

  • All-solid electric capacitor for motherboard

  • PCB Copper plating technology for Motherboard

  • Independent power supply designed for Motherboard CPU

  • Zero burning protection circuit for Motherboard

  • Dual safety device stabilize voltage and current for load data uniformly

Company advantages

  • 23 YEARS Motherboard FACTORY

  • ECO-ENVIRONMENT MATERIAL

  • CE ROHS FCC ISO CERTIFICATES

  • 50+ R8D DESIGNER TEAM

  • FAST DELIVERY SHIPPING

  • GUARAMTEED AFTER-SALE SERVICE
