▲ Support Intel Gen4 I7, I5, I3 series processors, rPGA947
socket
▲ Support 1 SATA interface, 2 USB3.0, 6 USB2.0
▲ supports a single 204-pin so-dimm to 8GB DDR3L/1600MHz ▲ Support 5.1 channel ALC887 chip
▲ Supports 1 COM
▲ High speed USB3.0 interface transmission speed
▲Mini PCIE expansion slot *2
▲RJ45 Gigabit LAN interface ▲ Support VGA/HDMI/LVDS display interface, and support
three synchronous display
▲ support Windows7, Windows10 32/64 bit operating system ▲ Support single power supply 12V DC input
| PRODUCT PROFILE | |||

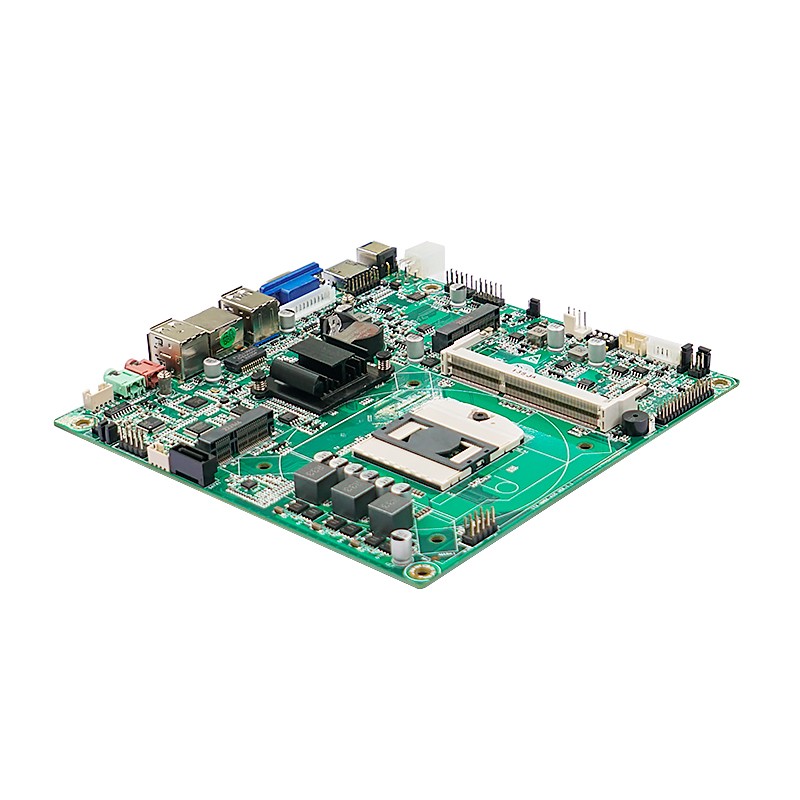

| Product Name | ITX-HM86-AIO-V1.1 ALL-IN-ONE PC Motherboard | ||
| CPU | Intel Gen4 i7/i5/i3 Series Processor | ||
| South Bridge | HM86 Chipset | ||
| RAM | Technology | Single Channel DDR3L 1600MHz | |
| Capacity | 8GB | ||
| RAM Slot | 1*204Pin DDR3 SO-DIMM(Non-ECC) | ||
| Rear I/O | DC | 1 Standard2.5mm DC Power socket | |
| HDMI | Standard Type D socket，Support HDMI1.2，maximum Resolution：4096x2160@30Hz | ||
| VGA | Standard DB15 socket，Max Supported resolution :2506*1600@60Hz | ||
| Ethernet | 1 Gigabit LAN , RTL8111F LAN Chip | ||
| Audio | 1(Line-out、Mic-in) | ||
| USB Port | 4（2*USB 3.0、2*USB 2.0） | ||
| internal connector | USB Port | 4(One FUSB can be transferred to two USB2.0 ports)； | |
| COM | 1(COM only support RS232 mode) | ||
| Amplifier | 1*4Pin 2.0mm White socket，Max Support 2*5W2ohm Horn | ||
| JHDMI Port | 2*8Pin，Support Max resolution 2560*1600@60HZ(HDMI orJHDMI optional) | ||
| JVGA | 1*12Pin， maximum supported resolution:2560*1600@60Hz,(VGA or JVGA optional) | ||
| LVDS | Support single (dual) channel 18（24），Max resolution :1920*1200@60Hz | ||
| Mini-PCIe | 1* Full Length Mini PCIe slot，Support WIFI | ||
| MSATA | 1* full length Mini PCIe slot，support SSD Hard disk | ||
| SATA | 1*7PIN SATA，Support SATA 2.0 | ||
| PWR Port | 1 Standard 2x2 Pin Power socket | ||
| one-key Reset | Supports one-button restore function | ||
| Watchdog | Output | System reset | |
| Interval | Programmable 1 - 255 Seconds | ||
| Power Consumption | Max Power | Standby Power Loss：20.4W Full load power consumption:90W | |
| Environment | Temp Range | Work Environment | Storage Environment |
| Temp：-10～60℃ Humidity：5%~95% | Temp：-40~85℃ Humidity：5%~95% | ||
| Dimension | size | 170mm x 170 mm | |
| Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China. |
| Our factory was established in 2003 and has a history of 20 years. Since its establishment, |
| we have focused on the production and research and development of computer motherboards, |
| graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years. |
| Office display |
| Product advantages: |
| Well-cooling system with Good thermal material aluminum base for motherboard |
| All-solid electric capacitor for motherboard |
| PCB Copper plating technology for Motherboard |
| Independent power supply designed for Motherboard CPU |
| Zero burning protection circuit for Motherboard |
| Dual safety device stabilize voltage and current for load data uniformly |
| Company advantages |
| 23 YEARS Motherboard FACTORY |
| ECO-ENVIRONMENT MATERIAL |
| CE ROHS FCC ISO CERTIFICATES |
| 50+ R8D DESIGNER TEAM |
| FAST DELIVERY SHIPPING |
| GUARANTEED AFTER-SALE SERVICE |
