▲Support Intel Sandy Bridge/Ivy Bridge series
processors, LGA1155 socket
▲Support 1 SATA interface, 1 MSATA interface, 8 USB2.0
▲Support single 204 pin SO-DIMM to 16GB DDR3 1600MHz ▲Support Realtek sound card/USB sound card optional, 1
rear audio, 1 audio amplifier ▲Support 1 serial port, support RS232 mode ▲Support 1 WIFI/4G module ▲Support 1 RJ45 Gigabit network card interface ▲Support VGA/HDMI/LVDS display interface, and support
synchronous dual display
▲Support Win7, Win10 32/64-bit, Linux operating system ▲Support DC12V DC power input
| PRODUCT PROFILE | |||

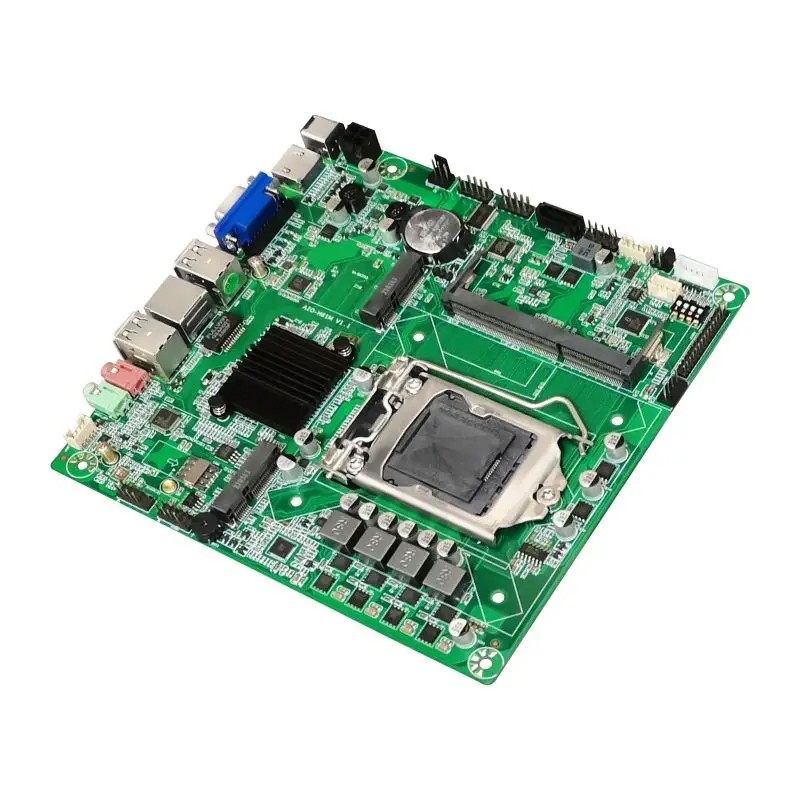

| Product Name | AIO-H61M-V1.1 ALL-IN-ONE PC Motherboard | ||
| CPU | Intel 2gen/3gen Celeron、Pentium、I3、I5、I7 Series Processor | ||
| South Bridge | H61 Chipset | ||
| RAM | Technology | Single Channel DDR3 1600MHz | |
| Max | 16GB | ||
| RAM Slot | 1*204Pin DDR3 SO-DIMM(Non-ECC) | ||
| Rear I/O | DC Port | 1 Standard 2.5mm DC power socket,Support DC12V input | |
| HDMI | Standard Type D socket，Support HDMI1.2，Max Resolution:2560*1600060Hz | ||
| VGA | Standard DB15 Socket，Maximum supported resolution 2560*1600@60Hz | ||
| Ethernet | 1Gigabit LAN, RTL8111F LAN Chip | ||
| Audio | 1*(Mic-in, Line-out) | ||
| USB | 4*USB 2.0 | ||
| internal connector | USB | 4*(1 FUSB Can be transferred to 2*USB 2.0 Port) | |
| COM | 1*(only support RS232mode) | ||
| Amplifier | 1*4Pin 2.0mm small white socket，Support 2*5W2 Ohm horn | ||
| LVDS interface | Supports single (double) channels 18（24）bit，Maximum resolution up to 1920*1200@60Hz | ||
| JVGA | 1*12Pin Plug-pin，Maximum supported resolution 2560*1600@60Hz, (VGA and JVGA only can choose 1 among 2) | ||
| MSATA | Support MSATA hard disk | ||
| Mini PCIe | Support WIFI/4G Module | ||
| SATA interface | 1*SATA port ，1*4Pin power supply socket，Support SATA 2.0 | ||
| LPC Port | 1*2*5Pin LPC Debug port | ||
| Power interface | 1*2*2Pin Power socket，Support DC12V input | ||
| Power Consumption | Max Power | Standby Power Loss：22.8W Full load consumption:81.6w | |
| Environment | Temp Range | Work Environment | Storage Environment |
| Temp：0～50℃ Humidity：5%~95% | Temp：-20~70℃ Humidity：5%~95% | ||
| Dimension | size | 170mm x 170 mm | |
| Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China. |
| Our factory was established in 2003 and has a history of 20 years. Since its establishment, |
| we have focused on the production and research and development of computer motherboards, |
| graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years. |
| Office display |
| Product advantages: |
| Well-cooling system with Good thermal material aluminum base for motherboard |
| All-solid electric capacitor for motherboard |
| PCB Copper plating technology for Motherboard |
| Independent power supply designed for Motherboard CPU |
| Zero burning protection circuit for Motherboard |
| Dual safety device stabilize voltage and current for load data uniformly |
| Company advantages |
| 23 YEARS Motherboard FACTORY |
| ECO-ENVIRONMENT MATERIAL |
| CE ROHS FCC ISO CERTIFICATES |
| 50+ R8D DESIGNER TEAM |
| FAST DELIVERY SHIPPING |
| GUARANTEED AFTER-SALE SERVICE |
