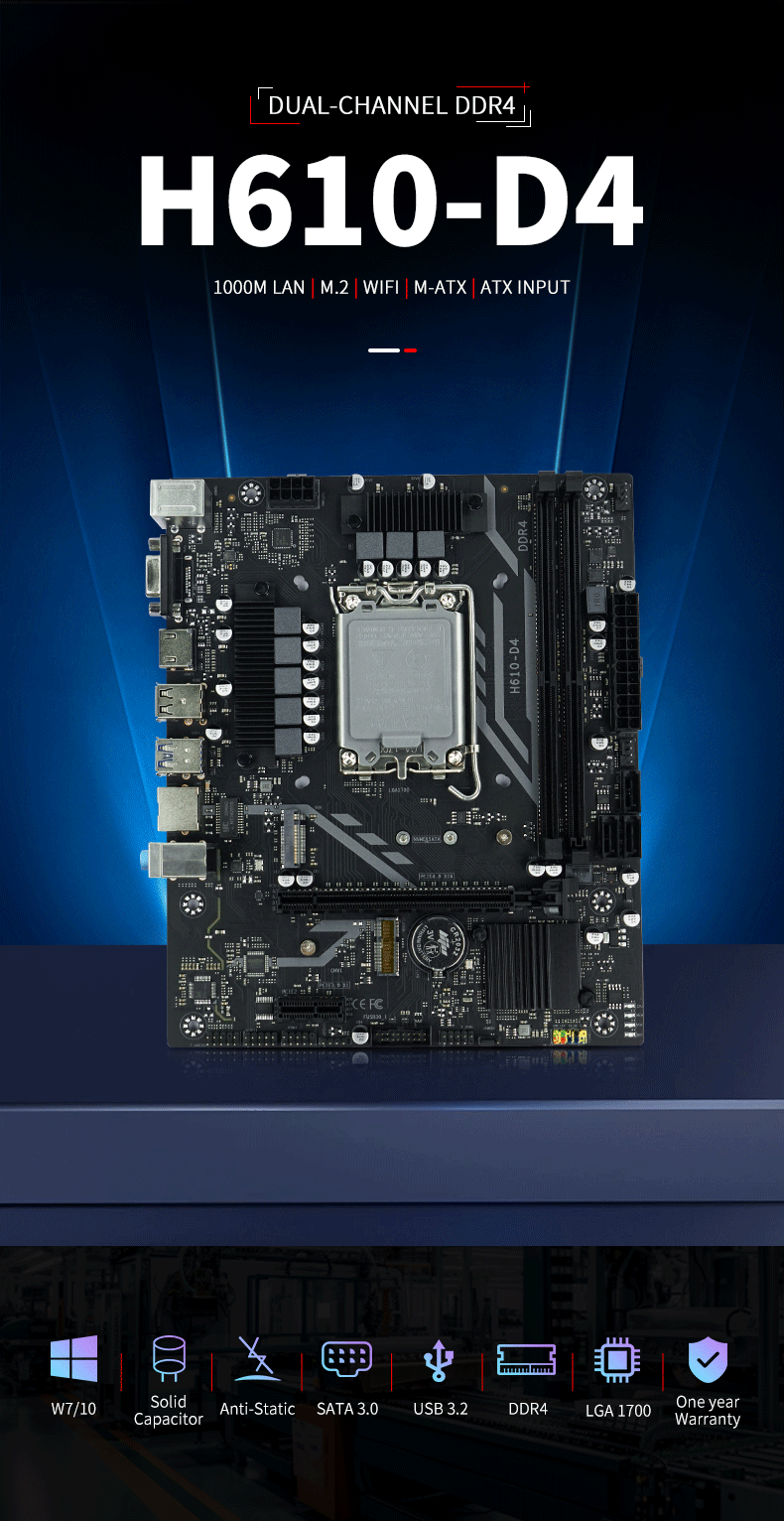

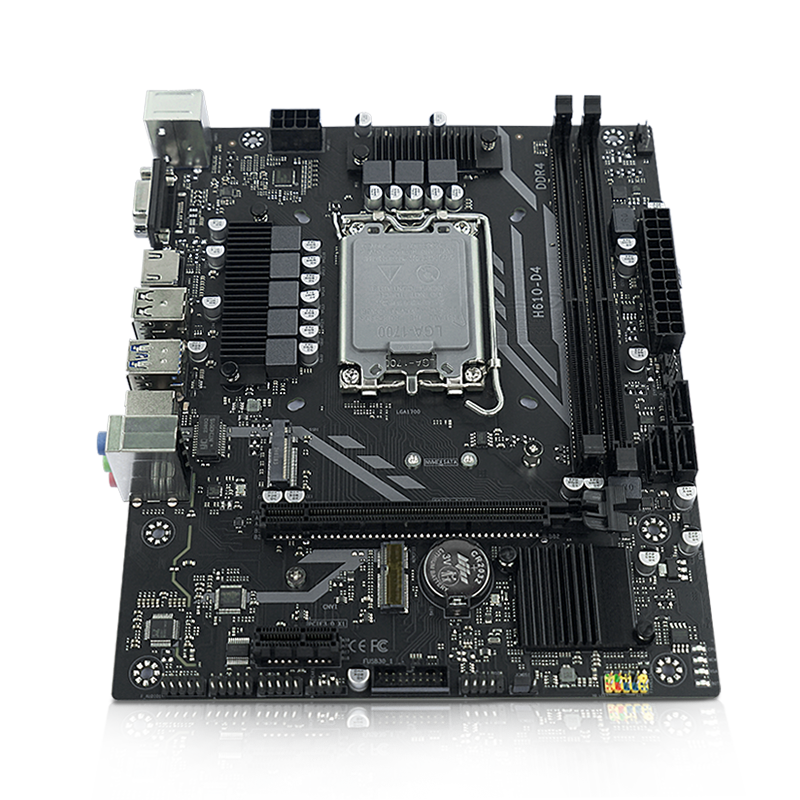

H610-D4 H610 Chipset desktop motherboard

H610-D4 H610 Chipset desktop motherboard

▲Support for LGA 1700 Intel Core i9 / i7 / i5 / i3 / Pentium
series processors ▲Support for VGA & HDMI synchronization and dual display
▲Support 1 M.2 (NVME / SATA protocol)
▲The 3 SATA interfaces are supported
▲High speed DDR 4 dual channel memory slot: support 2133 /
2400 / 2666 / 3000/ 3200 MHz, with a maximum capacity of 64G
▲Supports 4 USB3.0; 4 USB2.0
▲Support 1 serial port
▲RJ 45 Gigabit network card interface ▲Support 6 + 1 + 1 phase CPU power supply, 6 layer PCB

PRODUCT PROFILE
Product Name	H610-D4 H610 Chipset desktop motherboard
CPU	Intel Core 12 / 13 / 14 thI 9 / I7 / I5 / I3 / Pentium LGA 1700 pin series processor
South Bridge	H610 Chipset
RAM	Technology	Dual-channel DDR 4; support 2133 / 2400 / 2666 / 3000 / 3200 MHz (MAX),support XMP
	MAX	64GB (32G*2)
	RAM Slot	2 * 288 PIN DDR4

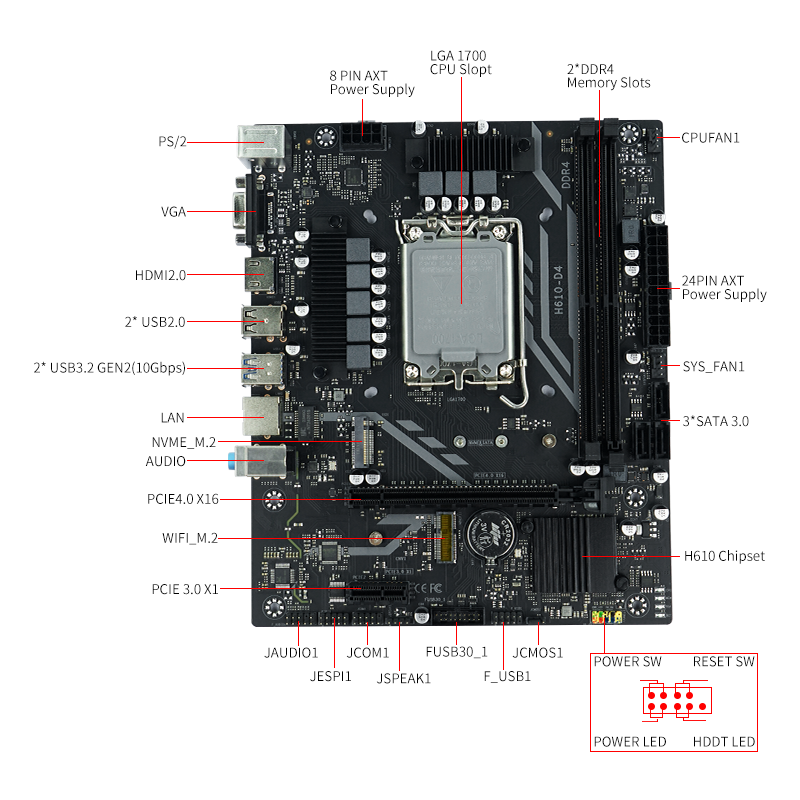

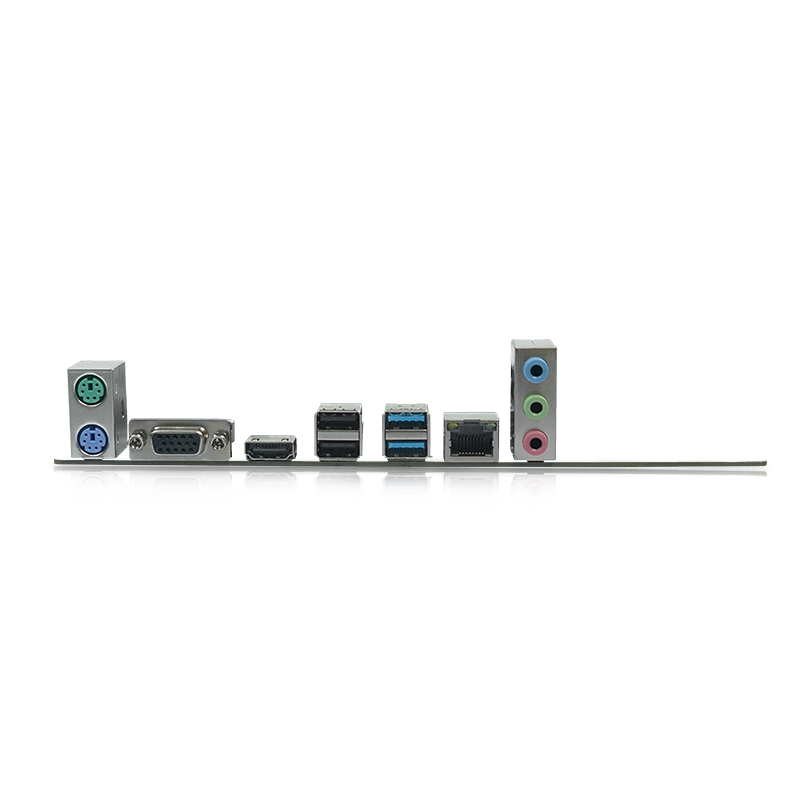

Rear I/O	PS/2	1 KB interface + 1 MS interface
	Display the interface	1HDMI2.0+1VGA
	USB	2* USB 2.0；2* USB3.2 GEN2(10Gbps)
	Ethernet	1 Realtek Gigabit network card
	AUDIO	1*(Mic-in, Line-out、Line-in)
internal connector	CFAN	1*4PIN
	SFAN	1*4PIN
	ATXPWR	1 standard 8 PIN power outlet; 1 standard 24 PIN power outlet
	USB2.0	2*(One FUSB can turn out two USB)
	USB3.0	2*(One FUSB can turn out two USB);5Gbps
	COM	1*2x5Pin
	WIFI	1*Support for the CNVI & PCIe protocol
	JSEPI	1*2x5Pin
	SATA	3*(SATA3.0)
	M.2	1* (PCIe GEN3 X4/SATA3.0 protocol)
	F_AUDIO	1*2x5Pin
	PCIe	1*PCIe X16 4.0, 1条PCIe X1 3.0
	F_PANEL	1*2x5Pin
environment	temperature range	work environment	Storage environment
		Temperature:0~50℃ Humidity: 5%~95%	Temperature: -20~70℃ Humidity: 5%~95%
Dimension	size	218mm x 180 mm
