▲Support Intel Celeron、Pentium、I3、I5、I7 series
processors,LGA1150 socket ▲Support double 204-Pin 16GB DDR3/1600MHzMemory slot ▲Support 5.1 channel ALC897 chip with onboard power
amplifier ▲Support 2*7Pin SATA port；1*MSATA
▲Support 1*com，support RS232 pattern ▲Support 2*USB3.0，6*USB2.0
▲Support Mini PCIE expansion slot ▲Support 1*WIFI/4G pattern ▲Supports one RJ45 Gigabit network adapter port ▲Supports VGAP/HDMI/LVDS display interface and synchronous
dual display ▲Support Win7/Win10 32-bit / 64-bit operating system,Linux
system ▲Supports DC input of DC12-19V power supply
| PRODUCT PROFILE | |||

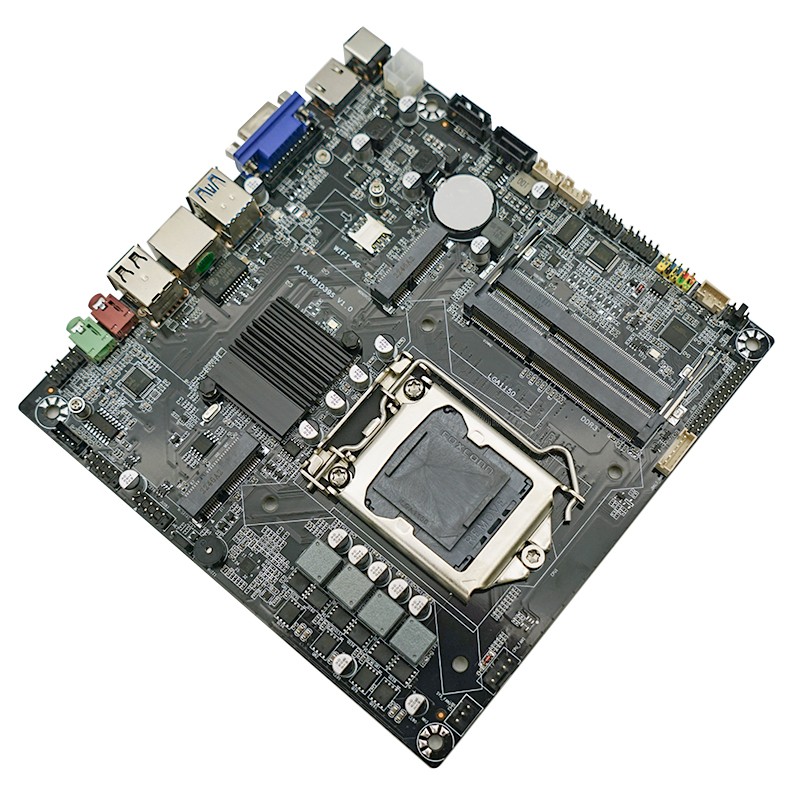

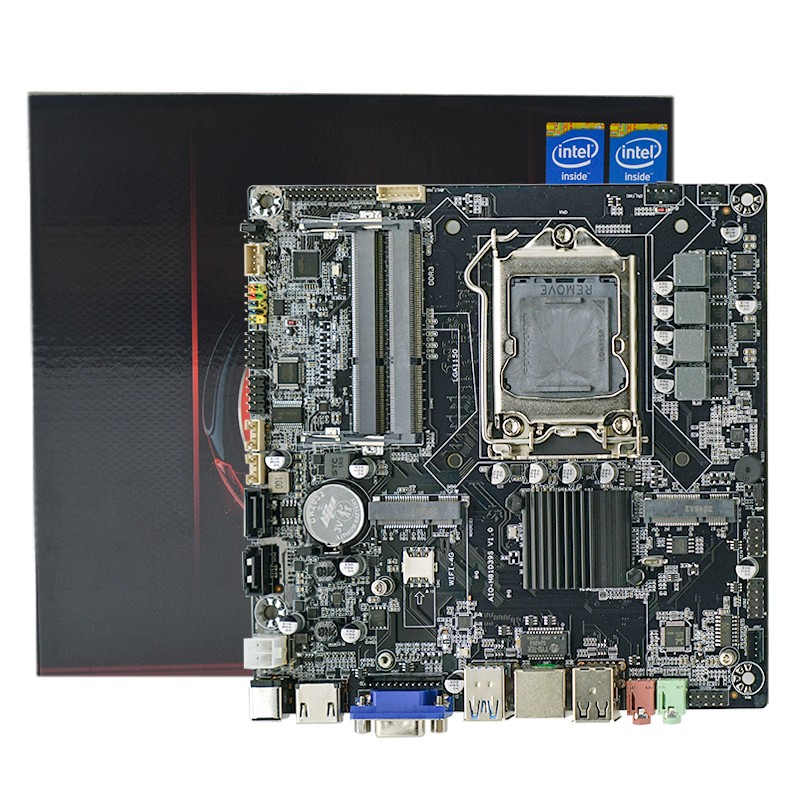

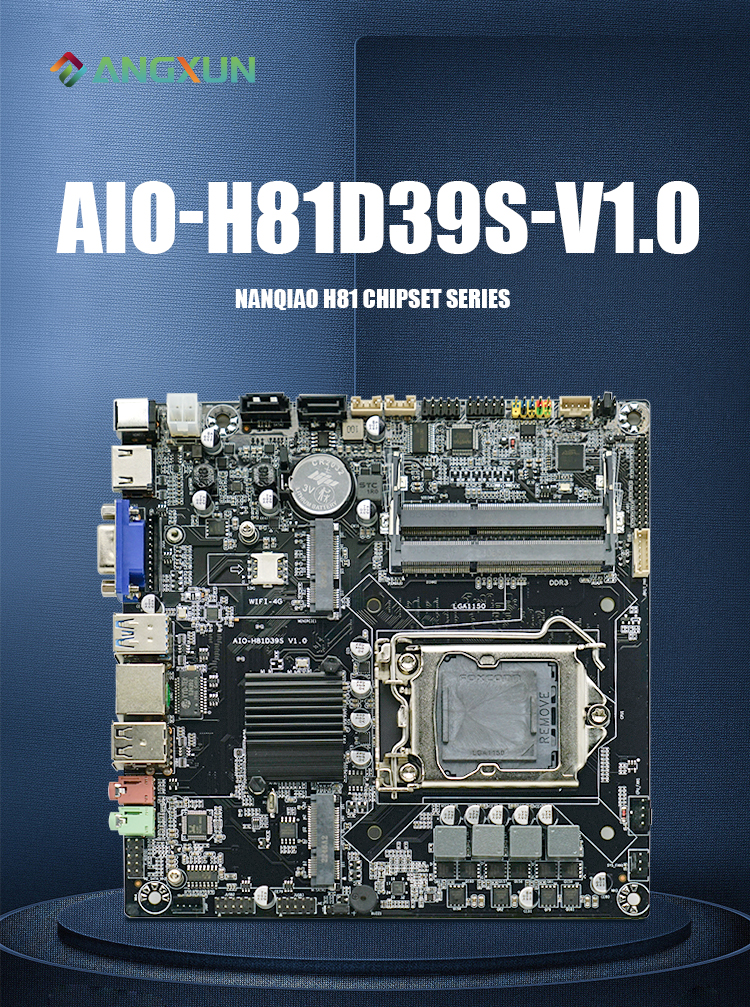

| Product Name | AIO-H81D39S-V1.0 ALL-IN-ONE PC Motherboard | ||
| CPU | Intel Celeron、Pentium、I3、I5、I7 series processors | ||
| South Bridge | H81 Chipset | ||
| RAM | Technology | Double DDR3 1600MHz | |
| Max Capacity | 16GB | ||
| Memory Slot | 2*204-Pin SO-DIMM(Non-ECC) | ||
| Rear I/O | DC Power Interface | 1 standard 2.5mm DC power socket, support DC12V~19V input | |
| HDMI | Provide 1 standard D socket, support HDMI1.2, maximum resolution:2560*1600@60Hz | ||
| VGA | Standard DB15 socket, maximum support resolution 2560*1600@60Hz | ||
| Ethernet | 1 Realtek Gigabit Ethernet | ||
| Audio | 1*(Line-out、Mic-in) | ||
| USB | 2*USB 3.0、2*USB2.0 | ||
| internal connector | FAudio | 1*2*5Pin(Mic-in、Line-out) | |
| power amplifier | 1*4Pin 2.0mm black socket, support up to 2 5W2 euro speakers | ||
| JUSB | 4*(One FUSB can transfer two USB2.0 ports) | ||
| Mini PCIe | Support WIFI/4G module | ||
| FAN | 2*(1*SYS_FAN;1*CPU_FAN） | ||
| LVDS | Support single (double) channel 18 (24) bits, the maximum resolution up to 1920*1200@60Hz | ||
| JBL1 | 1*4Pin 2.0mm off-white socket, support manual adjustment of LVDS screen backlight brightness | ||
| JLPC | One 2*5Pin LPC debugging interface | ||
| SATA | 2*7-PIN SATA ports and 2*4-PIN power sockets, supporting SATA3.0/SATA2.0 | ||
| COM | 1 PCS (RS232 mode only) | ||
| MSATA | Supports MSATA hard disks and SATA3.0 speed | ||
| JVGA | 1*12Pin pin, maximum support resolution 2560*1600@60Hz,(VGA and JVGA can only choose one | ||
| PWR | 1 standard 2x2Pin power outlet also supports 2Pin Phoenix terminals | ||

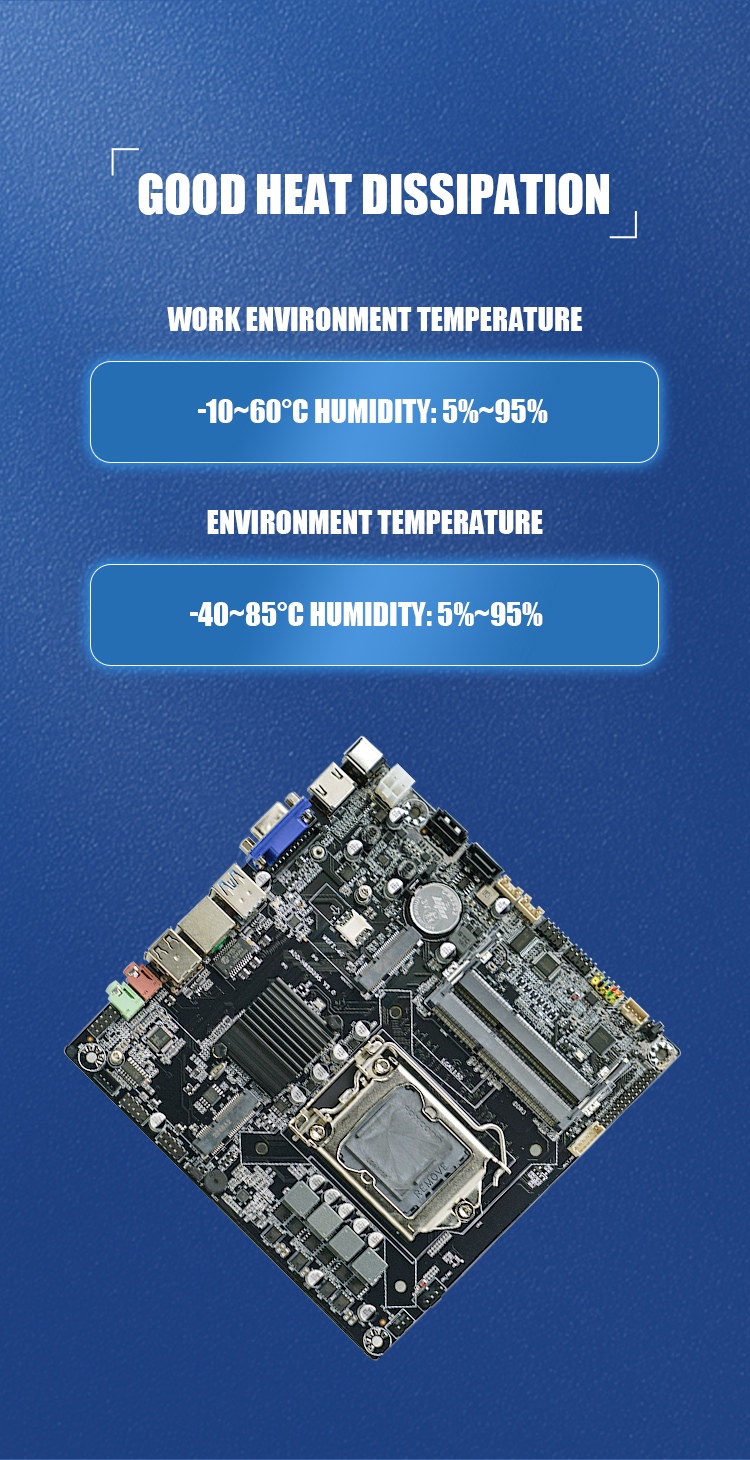

| Environment | Temp Range | Work Environment | Storage Environment |
| Temp：-10～60℃ Humidity：5%~95% | Temp：-40~85℃ Humidity：5%~95% | ||
| Dimension | size | 170mm x 170 mm | |
| Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China. |
| Our factory was established in 2003 and has a history of 20 years. Since its establishment, |
| we have focused on the production and research and development of computer motherboards, |
| graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years. |
| Office display |
| Product advantages: |
| Well-cooling system with Good thermal material aluminum base for motherboard |
| All-solid electric capacitor for motherboard |
| PCB Copper plating technology for Motherboard |
| Independent power supply designed for Motherboard CPU |
| Zero burning protection circuit for Motherboard |
| Dual safety device stabilize voltage and current for load data uniformly |
| Company advantages |
| 23 YEARS Motherboard FACTORY |
| ECO-ENVIRONMENT MATERIAL |
| CE ROHS FCC ISO CERTIFICATES |
| 50+ R8D DESIGNER TEAM |
| FAST DELIVERY SHIPPING |
| GUARANTEED AFTER-SALE SERVICE |
