The motherboard (English: mainboard) or motherboard (motherboard) is also called the main board, system board, logic board, bottom board, etc., referred to as MB. It is the center or main circuit board of a complex electronic system such as a computer.

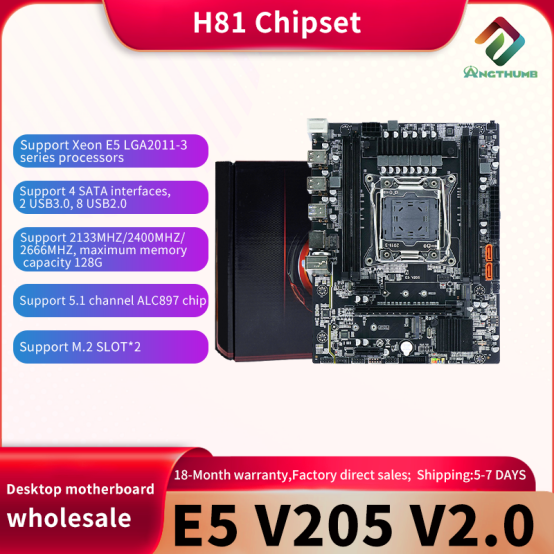

Today, we bring you a hot selling style Angxun H81 Chipset Series Motherboard, which is Angthumb E5 V205 V2.0. the following parameters are supported：

▲Support Xeon E5 LGA2011-3 series processors

▲Support 4 SATA interfaces, 2 USB3.0, 8 USB2.0

▲Support 2133MHZ/2400MHZ/2666MHZ, maximum memory capacity 128G

▲Support 5.1 channel ALC897 chip

▲Support M.2 SLOT*2

▲Support 3 PCIE interfaces: 1 X16, 2 X1 PCIE

▲Support RJ45 Gigabit network card interface

▲Support 6-layer baseboard, 6-phase power supply

▲Support Win7, Win10 32/64-bit operating system

The main function of the motherboard is to provide a series of connection points to form a connection platform that can integrate the processor, memory, storage devices (hard disk, solid-state drive, flash memory, etc.), display card, sound card, network card and various external devices. The motherboard is usually fixed directly to the inner wall of the chassis, and the surface is designed with slots for directly inserting expansion cards or line connections for connecting other built-in devices (such as optical drives). The most important component of the motherboard is the chipset. Early chipsets usually consisted of a north bridge and a south bridge. However, after 2010, Intel/AMD integrated the north bridge function into the CPU, so now the motherboard only has the south bridge chip. The chipset provides a common platform for the motherboard to connect different devices and control the communication between different devices. It also includes support for different expansion slots, such as processors and PCI Express. The chipset also provides additional functions for the motherboard, such as the GPU built into the chipset. Most of today's home motherboards have built-in sound cards and network cards. Some motherboards also integrate infrared communication technology, Bluetooth, and 802.11 (Wi-Fi). Some gaming motherboards support RGB LED lighting effects.

Motherboard specifically refers to a PCB with expansion capabilities. As the name suggests, the motherboard is often called the "mother" of all connected components, usually including peripherals, interface cards: sound cards, graphics cards, network cards, hard drives, TV tuner cards, IEEE 1394 cards, and various other custom components.

Similarly, the term "motherboard" is applied to devices with a single board and no additional expansion capabilities, such as printers, televisions, washing machines, mobile phones, and control boards in embedded systems.

Angxun has been in the motherboard industry for more than 20 years. Registered the brand Angthumb in many countries,we have focused on the production and research and development of intel motherboard,all in one motherboard,and Industrial motherboard,server motherboard etc.The website is : www.angthumb.com
